10

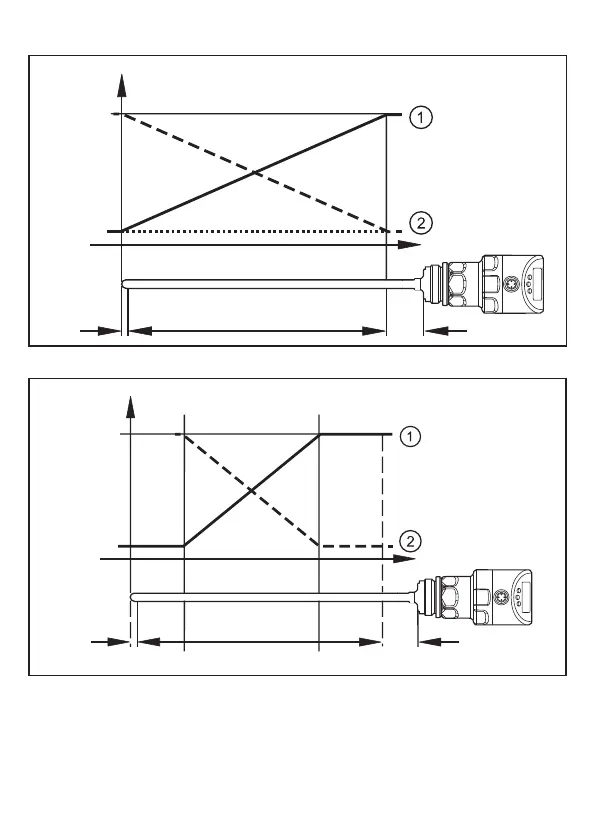

Curve of the analogue signal (factory setting):
I [mA]
L
20
4
A
I2 I1
Curve of the analogue signal (measuring range scaled):
I [mA]
L
20
4
A
ASP2 AEP2
I1 I2
L: level
①:
[ou2] = I (factory setting)
A: active zone = L - (I1 + I2)
②:
[ou2] = [InEG]
I1: inactive zone 1 ASP2: analogue start point
I2: inactive zone 2 (→ Technical data sheet) AEP2: analogue end point
Additional information about the analogue output: (→ 12.8)
Note the tolerances and accuracies during the evaluation of the analogue signal
(→ Technical data sheet).
