22

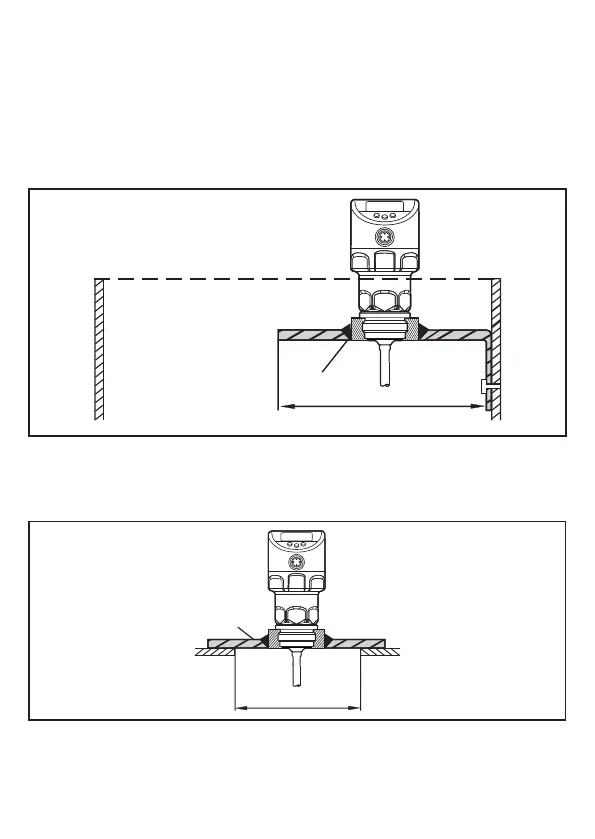

7.4.1 Installation in open tanks (e.g. for secondary processes)
► For installation in open tanks, use a metal fixture to install the unit� It serves as
a launching plate (R); minimum size: 150 x 150 mm for a square fixture, 150
mm diameter for a circular fixture (→ 12.1)�
► If possible, mount the unit in the middle of the fixture� Adhere to the specified
installation distances according to (→ 7.1); if necessary, carry out a tank
adjustment�
D1
R
D1:
R:
min� 150 mm
launching plate
7.4.2 Installation in plastic tanks (e.g. for secondary processes)
D1
R
D1:
R:
min� 150 mm
launching plate
To enable sufficient transfer of the measured signal, note in case of installation in
plastic tanks or metal tanks with plastic lid:
