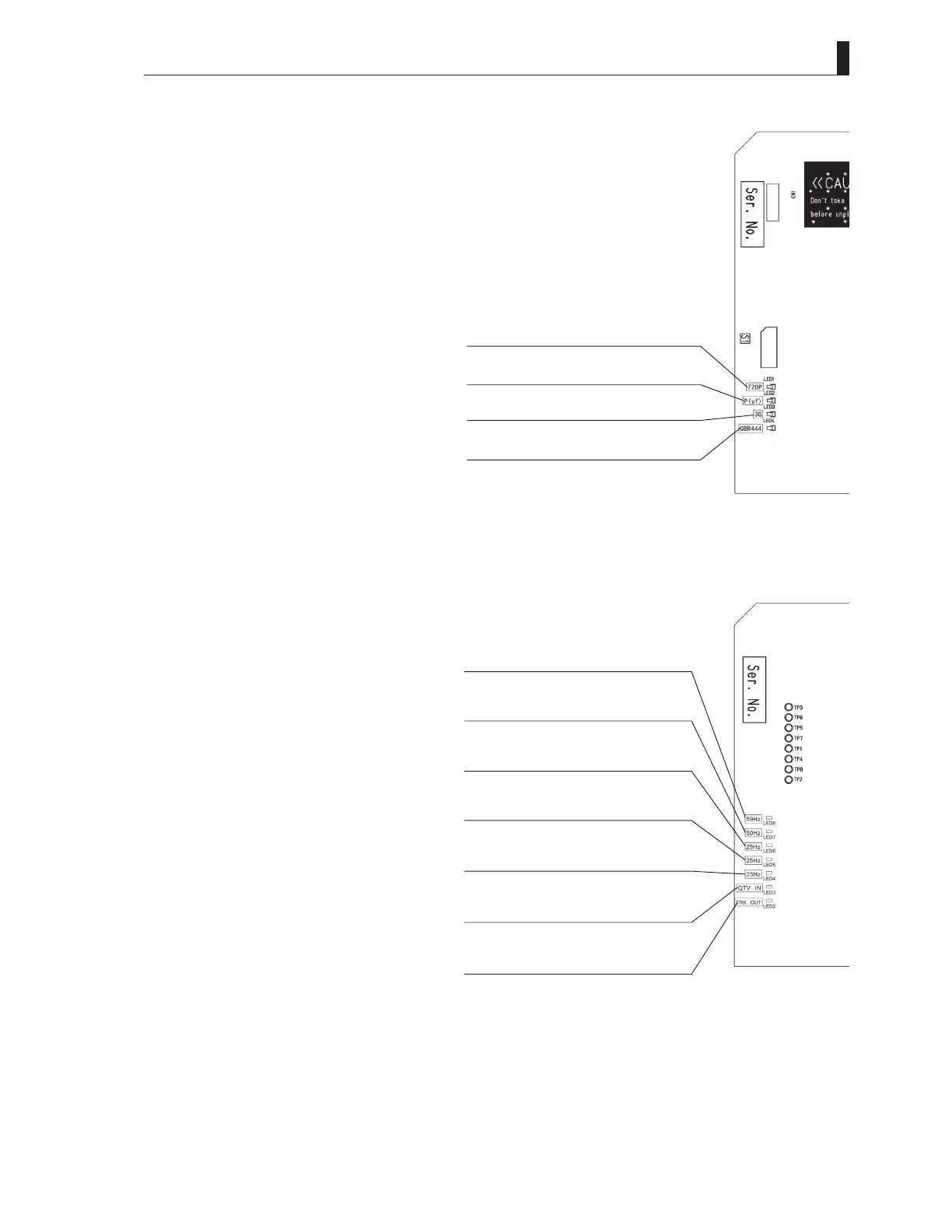

2.1 BS-98 Front View
②
OPT module
It displays the information related to the transmission between the camera head and BS/CCU.
Lightsupwhenformatthe720p.720P
LightsupwhenformatthepsF.P(sF)
Lightupwhenthe3Gtransmissionmode.3G
Lightupwhenthe4:4:4Mode.GBR444
CAUTION:
The OPT module is connected with the BS body via the optical cable (yellow). Do not disconnect the cable at any timing other than
replacing the module.
When the cable is disconnected forcibly, damaging and/or breakage of the cable may occur.
③
HPRC module
It displays the information related to the frame rate and bi-directional HDTV-TRUNK.
LightsupwhenformattheFramerate
59.94Hz.
59Hz
LightsupwhenformattheFramerate
50.00Hz.
50Hz
LightsupwhenformattheFramerate
29.97Hz.
29Hz
LightsupwhenformattheFramerate
25.00Hz.
25Hz
LightsupwhenformattheFramerate
23.98Hz.
23Hz
LightsupwhenitdetectsaHDTV
QTVinputsignal.
QTVIN
LightupwhentheHDTVTRUNK
outputmode.
TRKOUT
Note:
HD QTV : Transmits HD-SDI signals from BS/CCU to the camera head.
HD TRUNK : Transmits HD-SDI signals from the camera head to BS/CCU.
In order to use the above functions, a fiber adaptor that corresponds to the 3G transmission is required.
