3.1 HDTV Format
3.1 HDTV Format
This section explains the HDTV formats displayed on the BS menu and the self-diagnosis with some examples.
１０８０Ｉ５９．３Ｇ
2-3pulldown
Interface(3G:3G-SDI/No:HD-SDI)
Framefrequencies(59.94Hzinthiscase)
Scanningmode(I:interlace/P:progressive)
Numberofeffectivescanninglines(1080linesinthiscase)
１０８０ Ｐ ２３．ＰＤ
Segmentedframe
１０８０ Ｐ ２９．ＳＦ
■
2-3 Pull Down

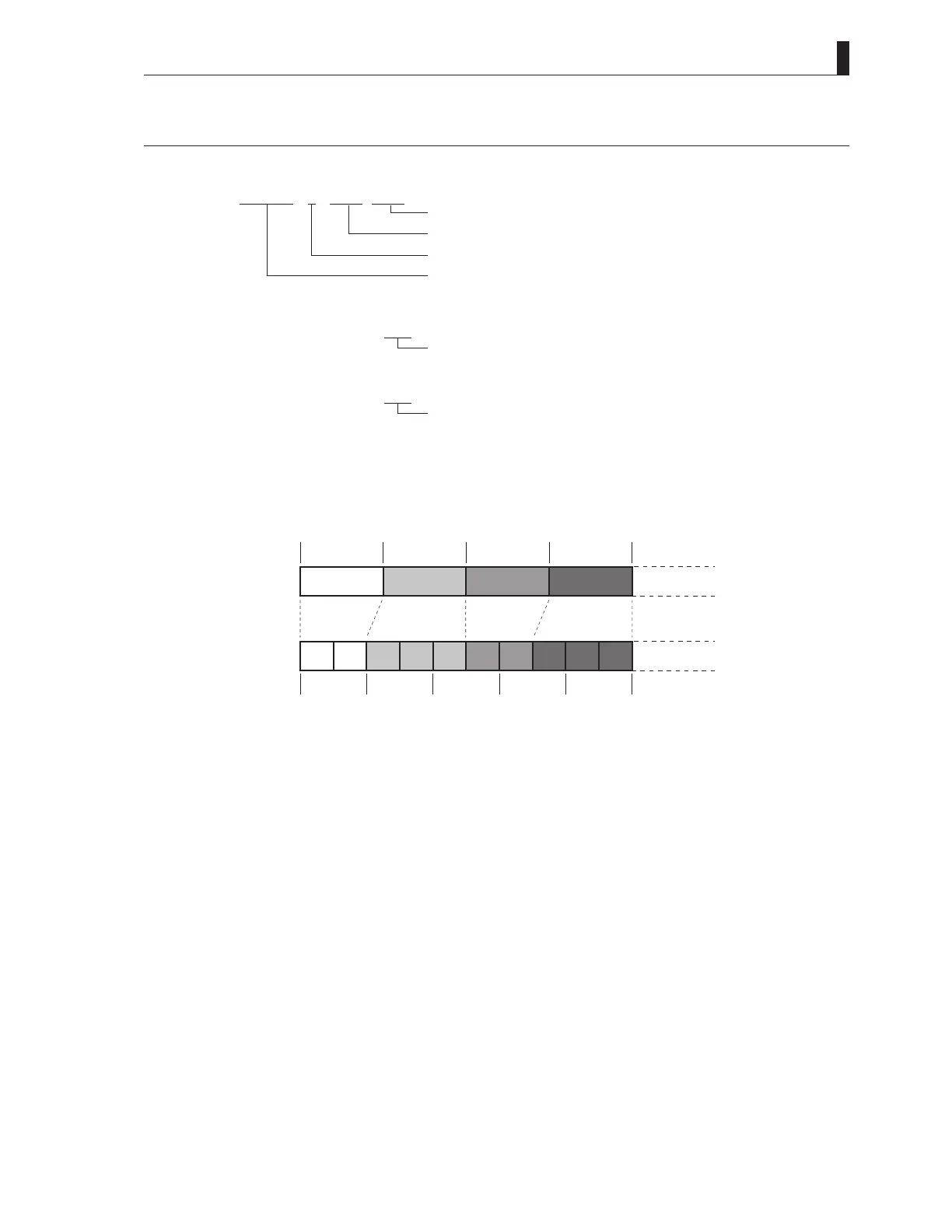

2-3 pull down is a method of converting a 24-frame (24P) video into a 60-field (60I) video.
This method has been used by Telecine, which converts film movies to television signals since early times, and connecting to many
kinds of HDTV systems is possible as the 1080p23.98PD signal can be handled as the 1080i59.94 signals.
1 frame
1 frame
10 fields
(A: odd field, B: even field)
2345
234
1
24P
234
1-B1-A 2-B 2-A2-A 3-A3-B 4-A 4-B4-B
60I
