4.5 Operating Systems
4.5 Operating Systems
■

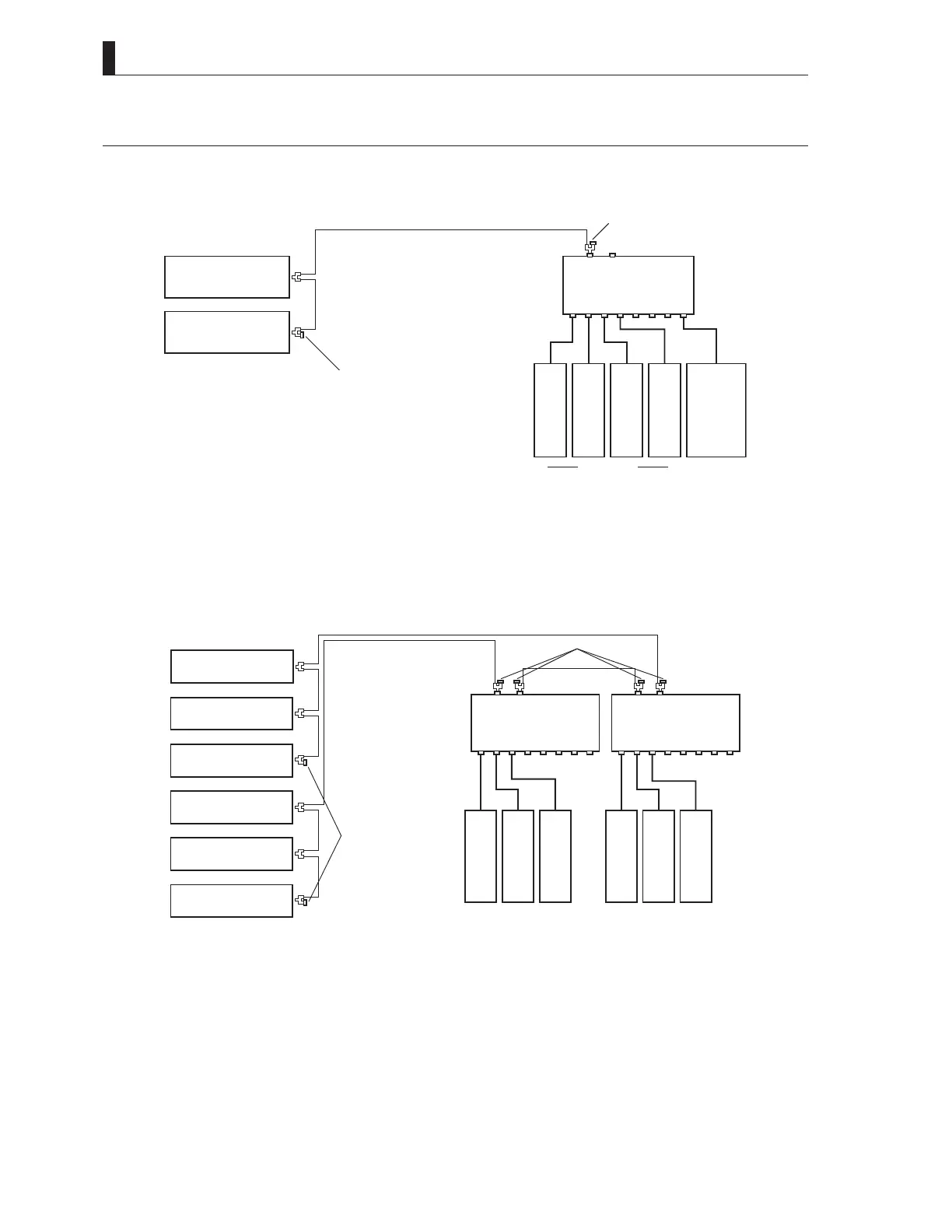

ARCNET Connection (Basic bus connection)
This connection configuration is available only for network-enabled CCU/BS such as the CCU-980 / BS-98.
Coaxialcable
75Ωtermination
75Ωtermination
ＣＣＵ-１
ARC
BS-2
ARC
CPcable
OCP-200 MCP-200
CPH-200
ARC1
ARC2
OP1 OP2 OP3 OP4 OP5 OP6 OP7 OP8
Note:
- The OCP/CCP connector and CSU/CCP connector on the CCU/BS cannot be used with the ARCNET connector at the same time in
this configuration.
- This product cannot be connected to the BSH-200 (BS HUB).
■
ARCNET Connection (Expansion bus connection)
This connection configuration is available only for network-enabled CCU/BS such as the CCU-980 / BS-98.
OCP-200
CPH-200
OP1 OP2 OP3 OP4 OP5 OP6 OP7 OP8
CPcable CPcable
OCP-200
CPH-200
ARC1
ARC2
ARC1
ARC2
OP1 OP2 OP3 OP4 OP5 OP6 OP7 OP8
Coaxialcable
Coaxialcable
Coaxialcable
75Ωtermination
75Ωtermination
CCU-2
ARC
CCU-3
ARC
BS-1
ARC
BS-2
ARC
BS-3
ARC
ＣＣＵ- 1
ARC
Note:
- The OCP/CCP connector and CSU/CCP connector on the CCU/BS cannot be used with the ARCNET connector at the same time in
this configuration.
- This product cannot be connected to the BSH-200 (BS HUB).
