2.2 BS-98 Rear View

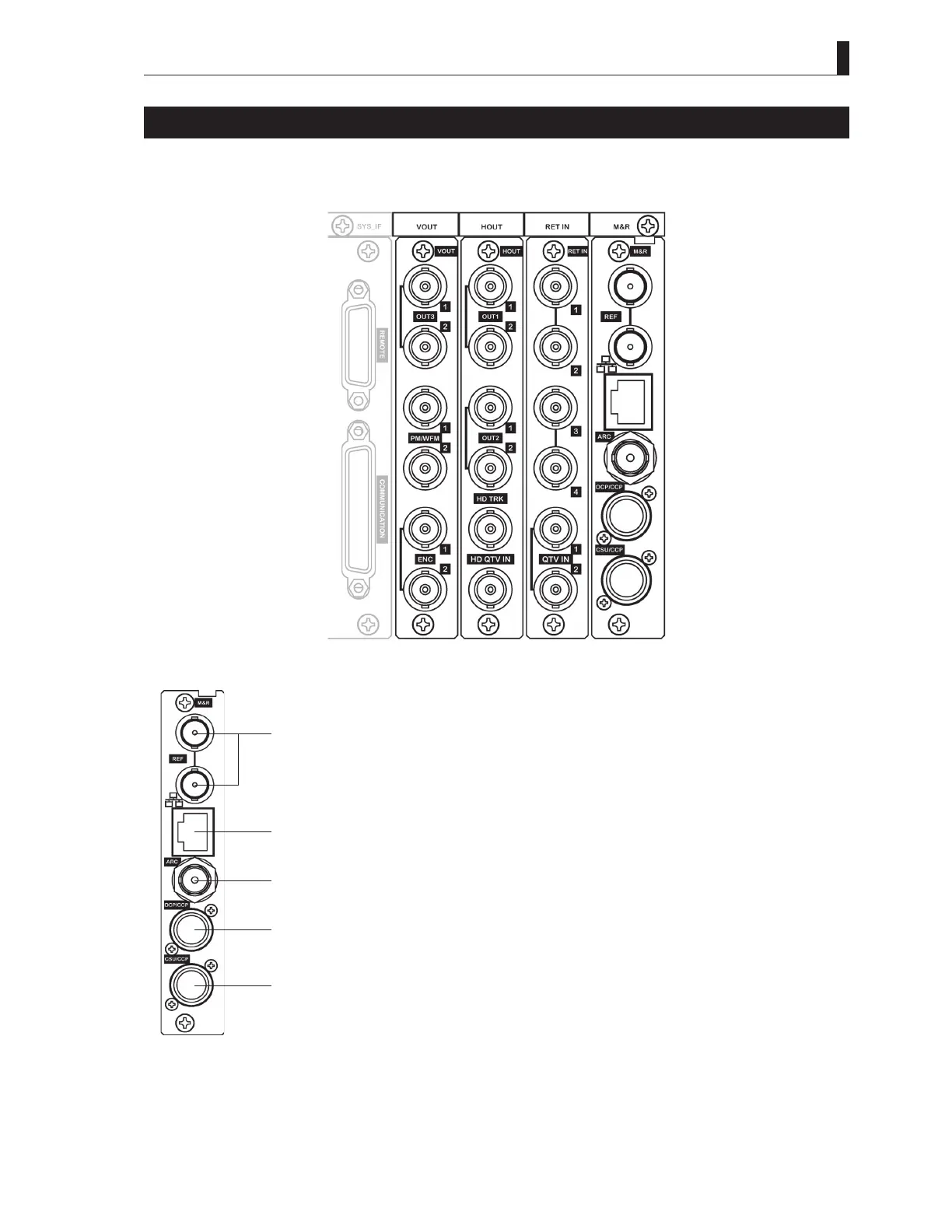

Modules on the Rear of the BS-98

Modules on the rear are also of slot type and can be removed/inserted as well as the modules on the front.

④VOUT

 module

③HOUT

 module

②RETIN

 module

①MPU&REF

 module

①

MPU&REF Module

1. REF connector

It inputs the reference signal (HDTV PS/S or SDTV VBS/BBS) from the external source. It is also

possible to input the signals, of which the 10 ﬁeld ID signal conformable to SMPTE318M is added,

to VBS/BBS.

Bridge connection is possible.

2. Ethernet RJ45 (8P8C) connector

This is a connector to be used for connecting with the system corresponding to Ethernet.

3. ARCNET connector

This is a connector for ARCNET. It is connected to CP HUB (option) by the coaxial cable.

Refer to the Instruction manual of CP HUB to be used for details.

CAUTION:

- Use the F-head type conversion plug for connection. In addition, use 75Ω type coaxial cables and

terminators.

- When the connector contacts the housing, failures may be caused. Pay close attention when

handling.

- When using the F-head type conversion plug, cover with an insulation cover or other item.

4. OCP/CCP connector

Connect with CP cable and OCP.

5. CSU/CCP connector

Connect with CP cable and CSU.
