23
BS-98 1409 VER1 (U) (E)

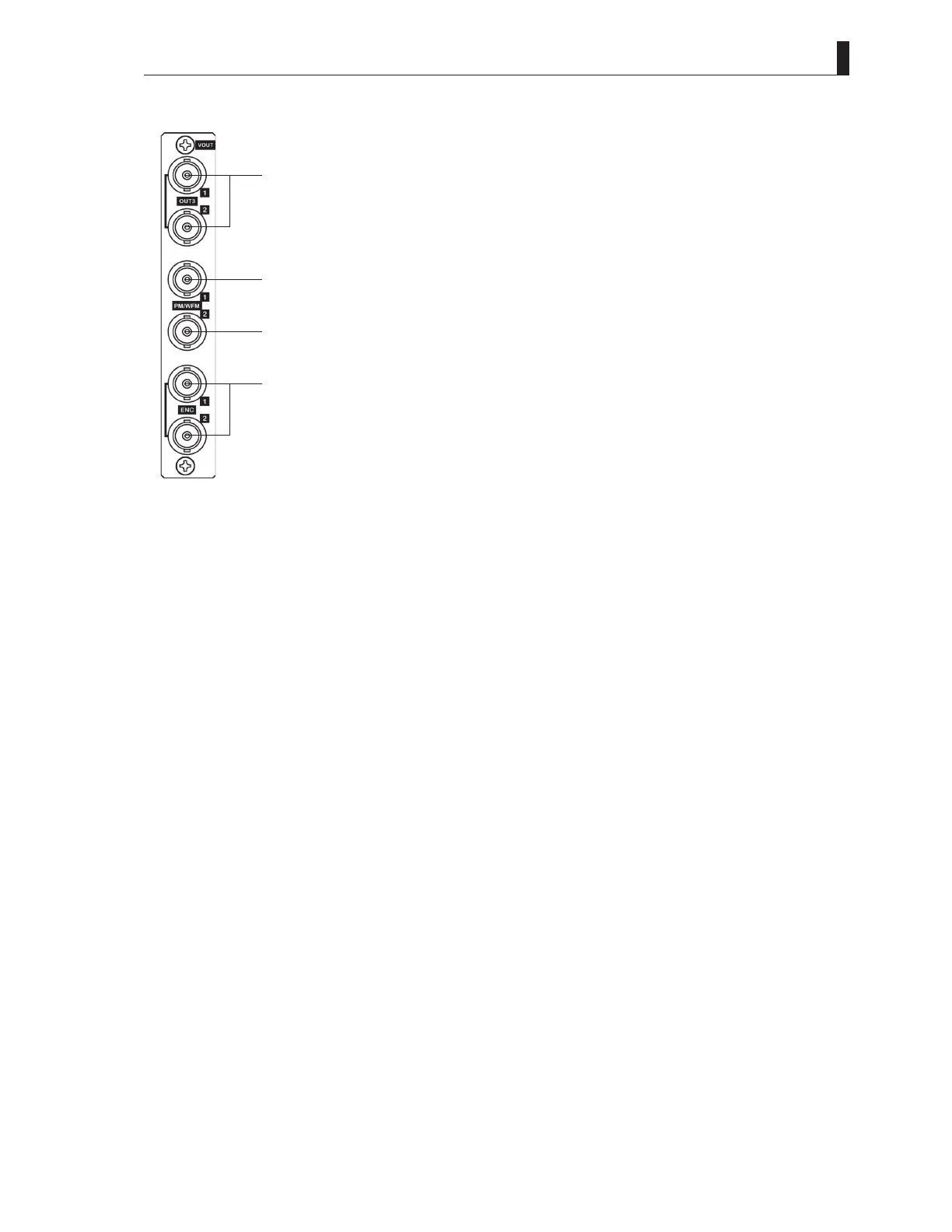

2.2 BS-98 Rear View
④
VOUT Module
1. OUT3 connector
It outputs SDI signals in three rates of 3G/HD-SDI/SD-SDI. 1 line and 2 outputs.
SD-SDI is the SMPTE259M 270 Mbps signal.
2. PM-1 OUT connector
It outputs SDI signals in three rates of 3G/HD-SDI/SD-SDI for the picture monitor. 1 line and 1
outputs.
SD-SDI is the SMPTE259M 270 Mbps signal.
CCU/BS menu characters and PM menu characters that indicate various data are superimposed in
the image.
3. PM-2/WFM OUT connector
The following signals are output by selecting "OUTPUT FORMAT" -> "PM-2/WFM" on the menu.
- PM HD-SDI
It outputs SDI signal that is the same as PM-1 OUT.
It outputs SDI signals in two rates of 3G/HD-SDI for the picture monitor. 1 line and 1 output.
CCU/BS menu characters and PM characters that indicate various data are superimposed in the
image.
- PM SD-SDI
SD-SDI signal for the picture monitor is output. 1 line and 1 output.
CCU/BS menu characters and PM characters that indicate various data are superimposed in the
image.
- WFM (OUT-3)
The signal that is the same as OUTPUT FORMAT set at OUT-3 is output. 1 line and 1 output.
4. ENC OUT connector
Analog composite (ENC) signal is output. 1 line and 2 outputs.
CAUTION:
- When SDTV Option (SPRC module) is not mounted, the SD-SDI output and the ENC output become disabled.
- CCU/BS menu characters are superimposed in the SDTV output (SD-SDI and ENC OUT).
1
2
3
4
