4.4 Setup of the crucible chamber

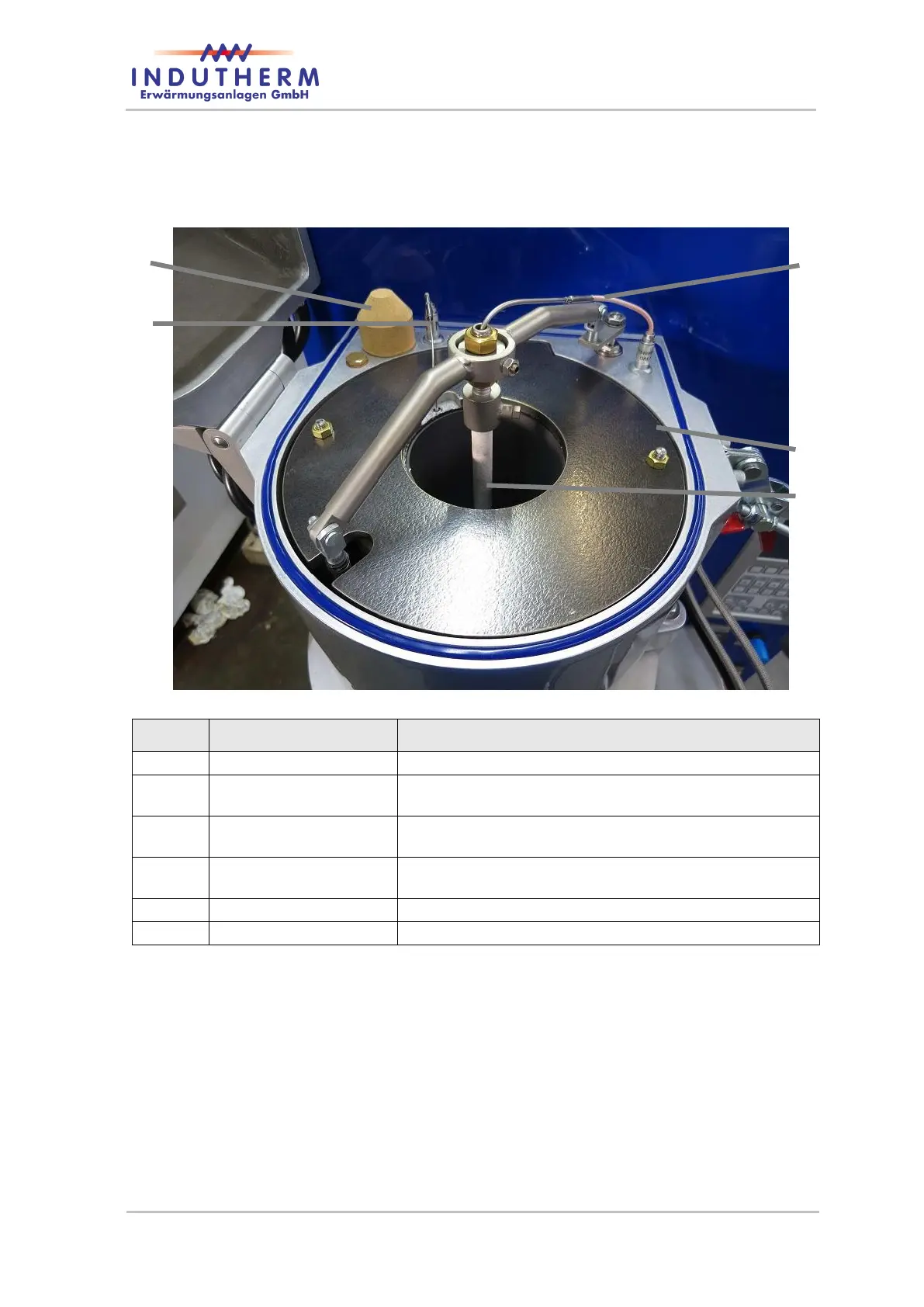

Figure 4: Setup of the crucible chamber
1
3
2
4
5
position
designation
function
1
metal filter C038
Brass filter for vacuum build up.
2
thermocouple wall
Thermocouple connector for wall measurement, only sec-
ondary temperature measurement.
3
thermocouple centre
Thermocouple for the sealing rod centre measurement.
This is the temperature main measurement spot.
4
twist safety
This is part is for the guiding of the sealing rod and ensure
centre position.
5
sealing rod
For closing the crucible bottom hole.
6
crucible press plate
This stainless-steel plate holds the crucible in position.
