Indutherm CC3000 - Refill System

System
description
TechDoku_CC1000_VCC1000_CC3000_VCC3000_GenPM_GB_86025010_86025110.doc
4–13
4.6.3 Refill system

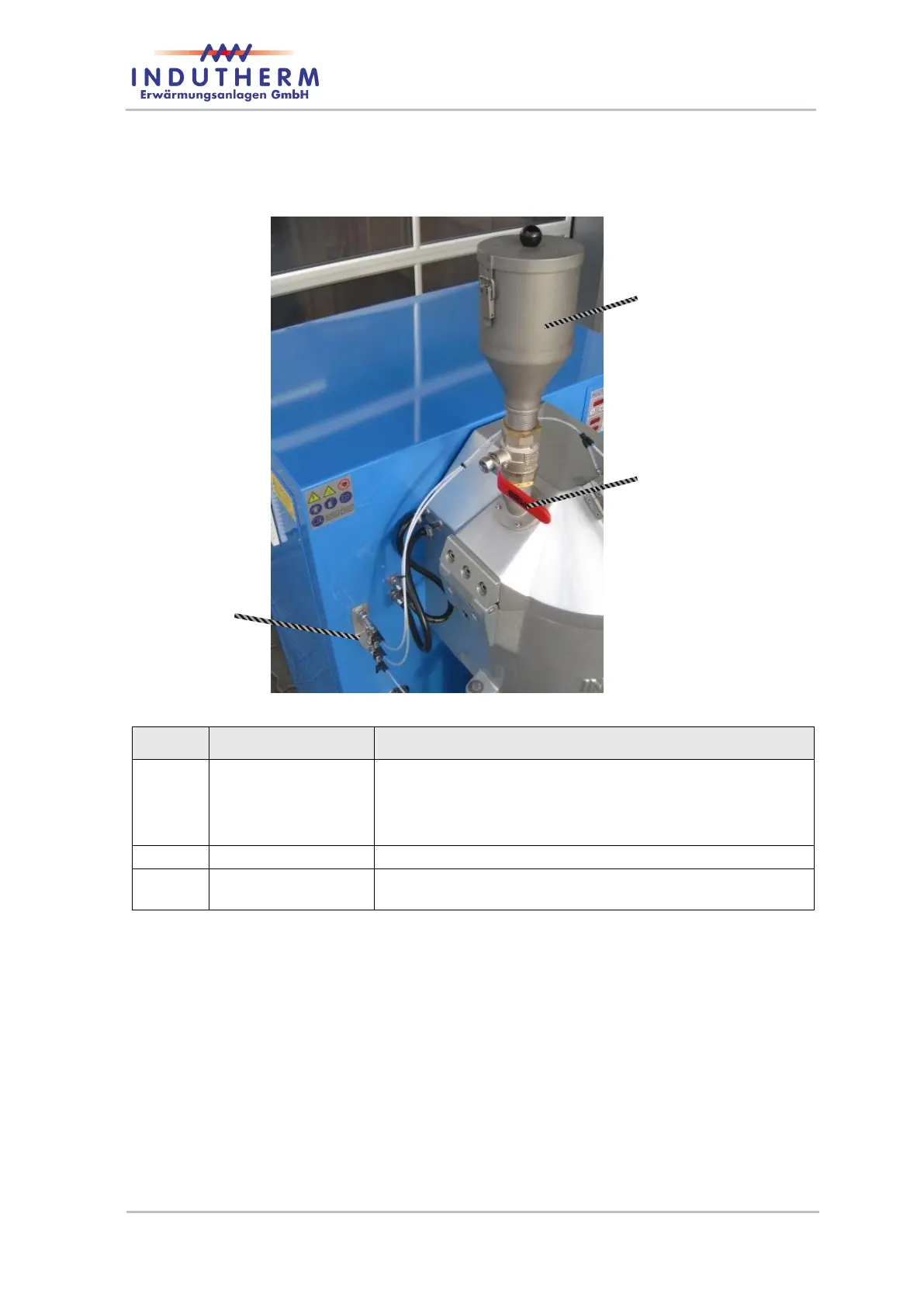

Figure 25: option refill system
position
Designation
function
1
control valves
Allow the supply of protective gas into 3 areas. From above:
a.) option hinged window
b.) option refill system
c.) in the vacuum pressure casting tank
2
refill container
Here the additional material can be filled in.
3
lever
Opens access to the refill system. Additional material can be
refilled in the crucible via a chute.
1
2
3
