6–4
are backup fuses for this output. During commissioning the correct di-
rection of the vacuum pump must be checked, otherwise the pump
will be destroyed.
6.3.7 RS232 for service
At this plug our serial cable can be connected (article no. 50500060).
For the use an internal cable at the generator must be switched with
the actual attached modem cable.
6.3.8 USB socket (universal serial bus) for service
Here, the machine can be connected to a PC. Use the data manage-
ment software provides by Indutherm to read system data and casting
programs. It can also record casting logs electronically.

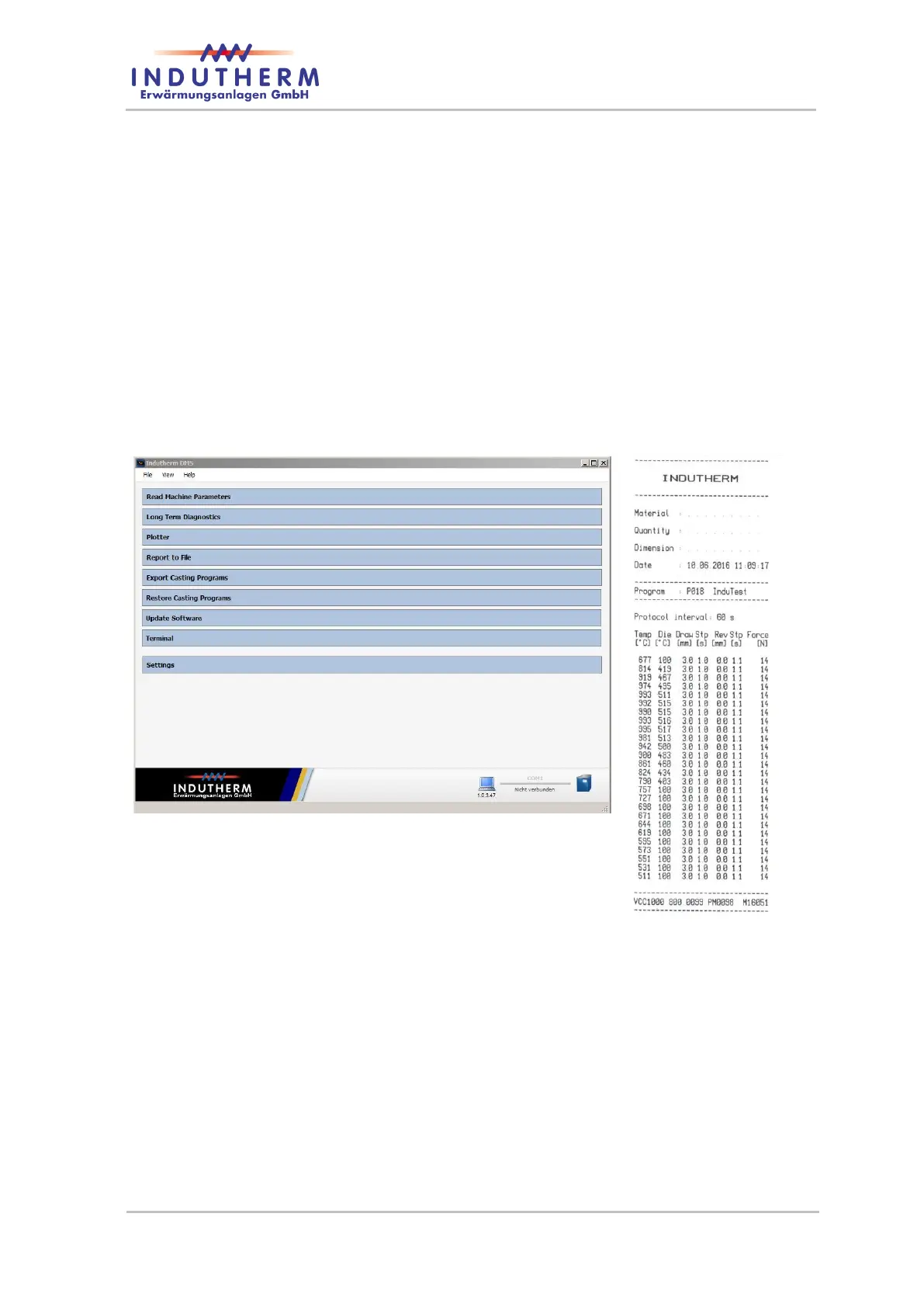

Figure 28: data management software menu
Figure 29: casting log
6.3.9 LAN-socket (Local Area Network) for service
Machine can be connected to a network.
6.3.10 Internal modem (modem antenna)
The machine is equipped with a modem on mobile phone base. This
can be used by Indutherm service for read outs from the induction
generator, which may be useful for debugging and fine-tuning your
machine. The free use is valid for 10 years with occasional use.
Please connect the antenna with machine connector. Compare differ-
ent antenna positions (near to window) with signal strength in ‘OP A:’
at ‘Service-Info-Page 2’.
