4.2 Schematic representation

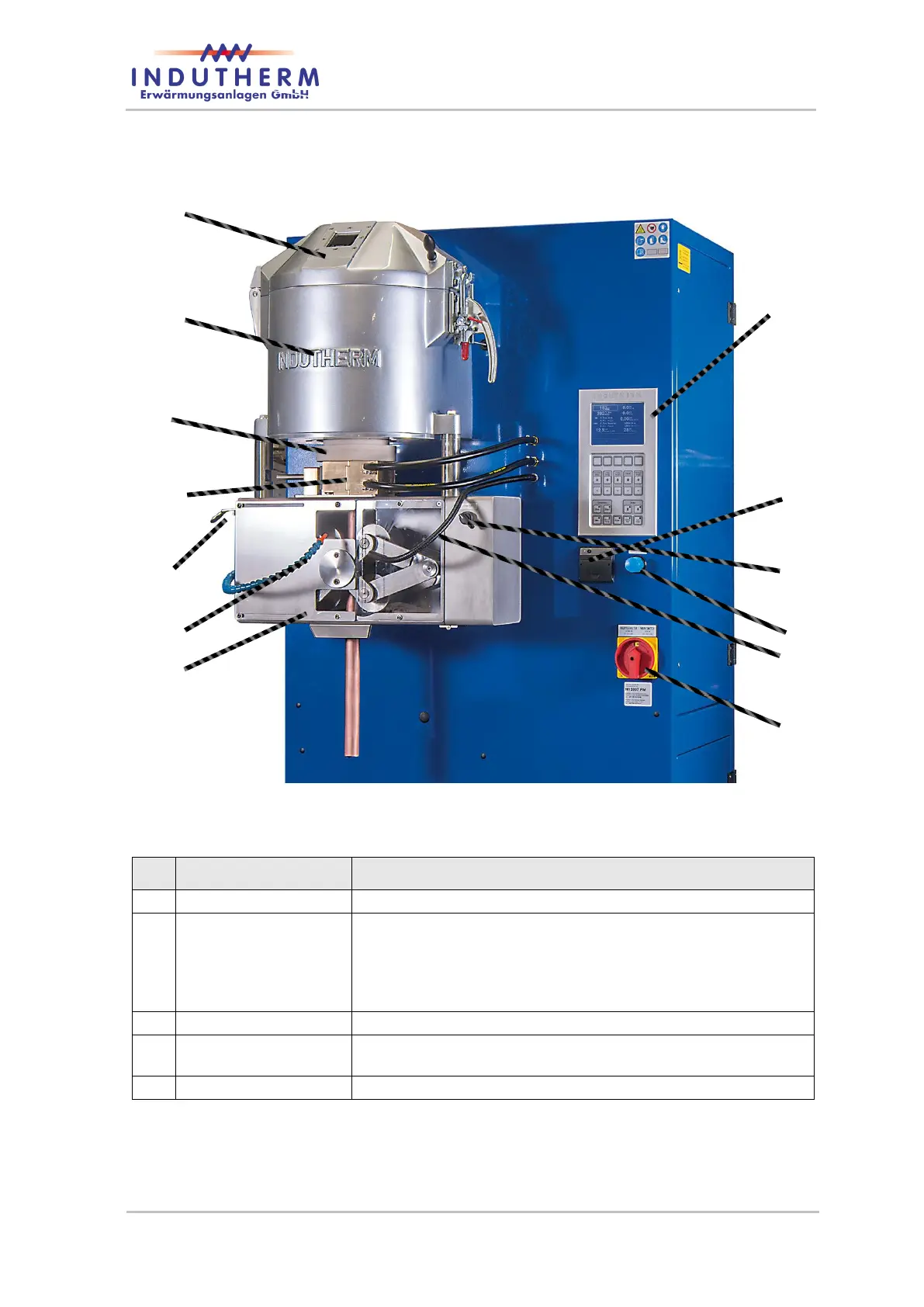

Figure 1: overall view
1
2
8
3
4
9
5
10
6
11
7
12
13
pos.
designation
function
1
bell with window
Closing the inductor housing.
2
inductor housing (cruci-
ble chamber)
In the inductor housing are:
 Induction coil
 crucible
 insulation and
 crucible press plate.
3
die insulation
Heat insulation material.
4
die cooler and die
There are different shapes (round and rectangular) of open die
cooler (CC) and vacuum sealed die cooler (VCC).
5
Secondary chiller
Additional water cooling.
