4.3 Backside connections

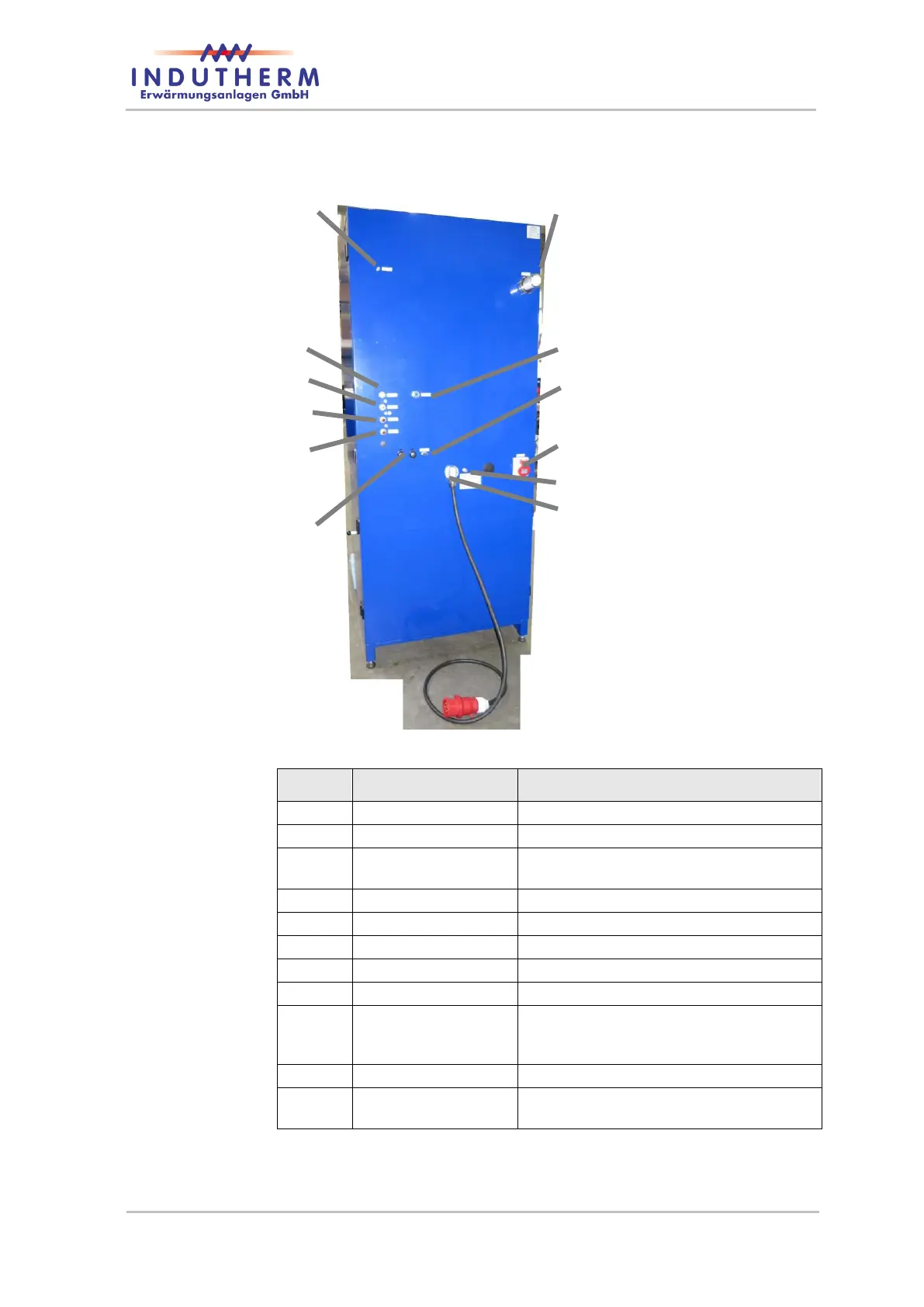

Figure 3: backside of the vacuum pressure casting machine
1
7
2
8
3
9
4
5
10
11
6
12
position
designation
Function
1
Modem
Connector for modem antenna.
2
Protective gas
Protective gas supply input.
3
Vacuum
For the hose from the external vacuum
pump.
4
Water Input
Cooling water supply input.
5
Water Output
Cooling water outlet.
6
Serial Interface
Connection for PC via USB or Ethernet.
7
Filter crucible
Filter for vacuum in crucible area.
8
Gas out
Depressurization.
9
Serial Inter-
face/RS232
Connection for PC over Indutherm-RS232-
cable (socket actual attached to internal
modem).
10
Vacuum pump
Socket for plug from vacuum pump.
11
Power supply
Power supply of the vacuum pressure
casting machine.
