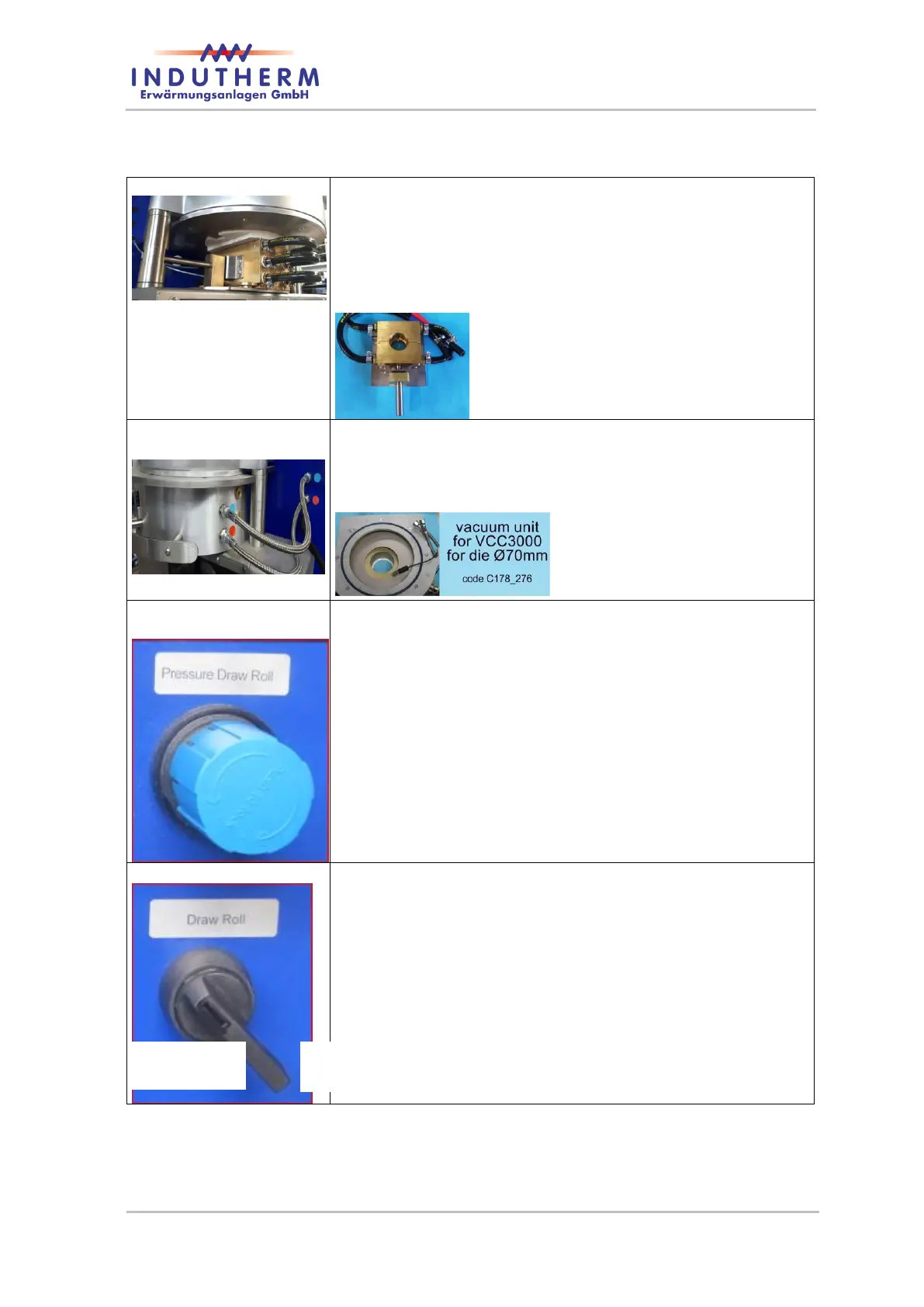

4.5 Additional operating elements
Die cooler:
Brass-part with water hoses. Here you can see the round
shape. It is used for wire and tubes. Other option is rectangu-
lar shape. Please look in Web-Shop for part C718.
Figure 6: round die cooler
Figure 7: vacuum die
cooler
Vacuum die cooler:
Part with water hoses. For round and rectangular dies. Please
look in our Webshop for code C718_251 C718_271.
Figure 8: pressure draw roll
regulator
“Pressure Draw Roll” regulator:
With this pressure regulator is it possible to change the pres-
sure of the cylinder for the drawing device. If the die is in a
good condition normally it is enough to have 0.5 up to 1 bar. If
it is necessary to have a higher pressure then the condition of
the die should be checked.
Figure 9: Draw roll switch
Draw Roll switch:
Due to this switch the cylinder for the drawing device will press
the wire/sheet/tube against the drawing roll.
