Indutherm CC3000 - Cut Drawing VCC

Annexe
TechDoku_CC1000_VCC1000_CC3000_VCC3000_GenPM_GB_86
025010_86025110.doc
10-11

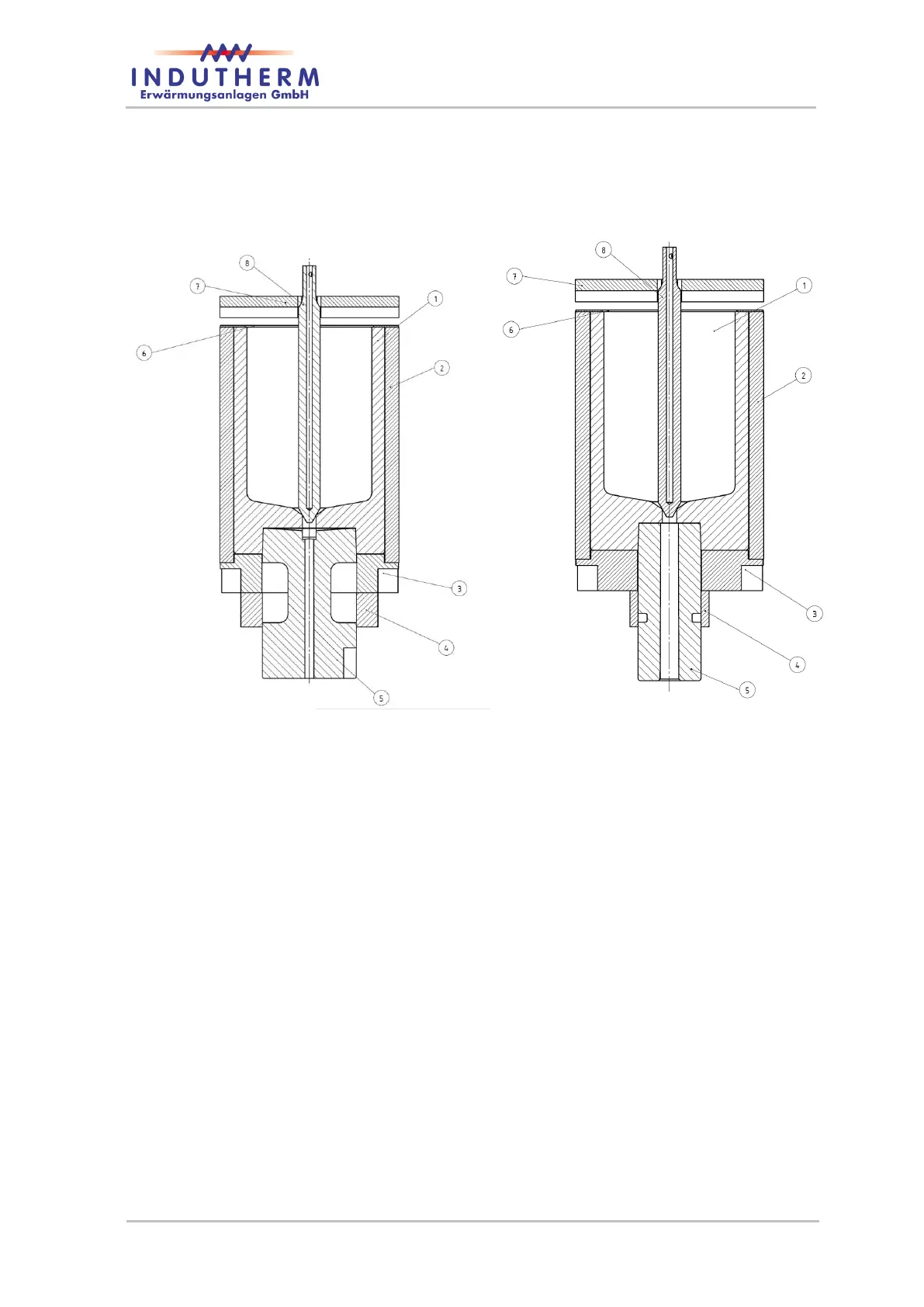

10.6 Cut drawing VCC
Figure 56: Cut drawing die cooler Ø110
1 graphite crucible
2 crucible shield 209x177x275
3 crucible bottom insulation
4 die insulation
5 die for wire
6 crucible press insulation
7 crucible cover
8 sealing rod
Figure 57: Cut drawing die cooler Ø070
