System
description
TechDoku_CC1000_VCC1000_CC3000_VCC3000_GenPM_GB_86025010_86025110.doc
4–4

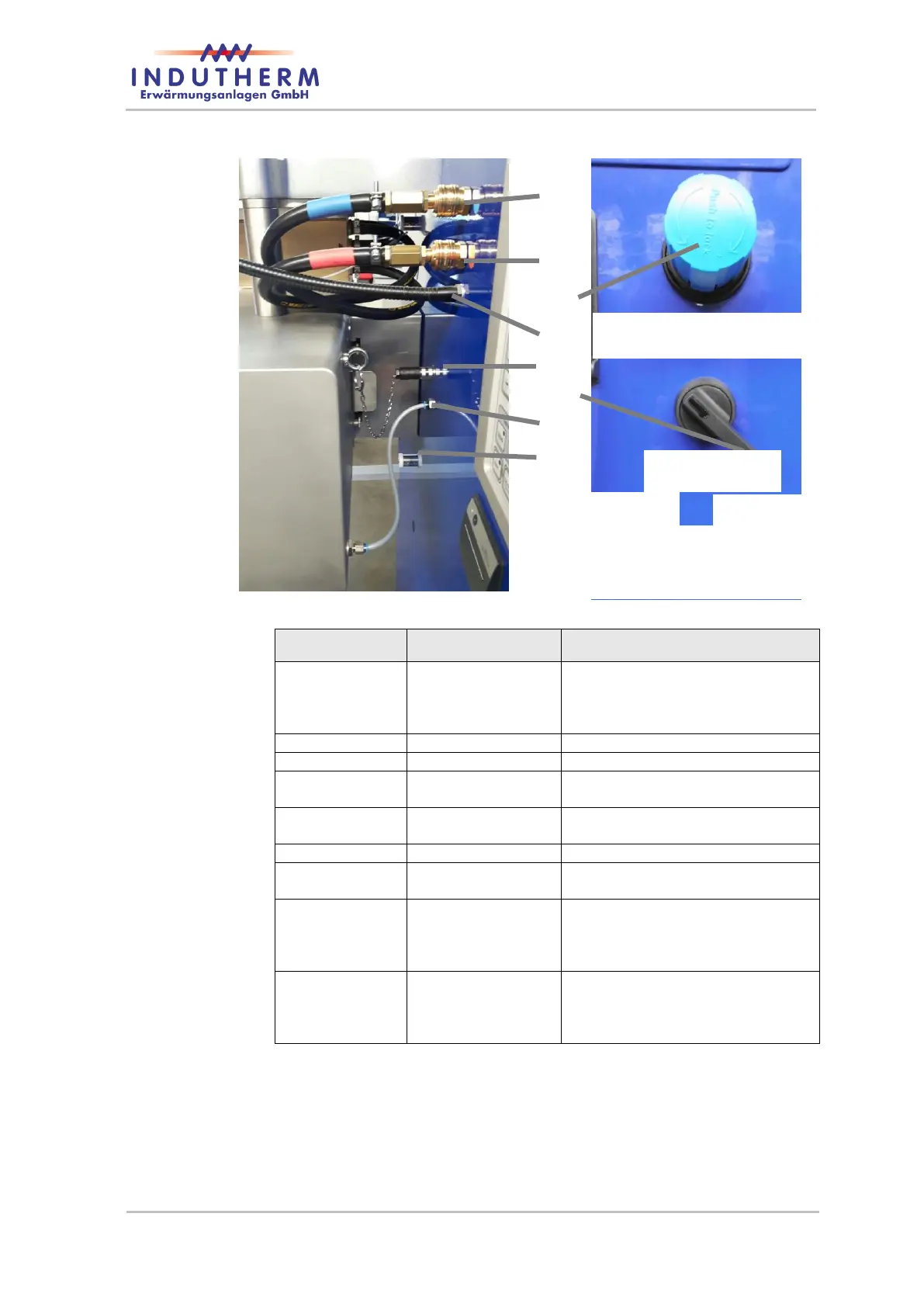

Figure 2: Front connection and additional control elements
1
2
7
3
4
8
5
6
pos.
designation
function
1
Code plug
Connection of the strand-end de-
tection in continuous casting appli-
cation. For granulating or sintering
you have to connect right plug.
2
Cooling water feed
Die cooling.
3
Cooling water reflux.
Die cooling.
4
Protective gas feed.
Strand-end-detection cylinder be-
hind.
5
Protective gas re-
flux.
Strand-end-detection cylinder in
front
6
Protective gas feed.
Press-roll cylinder behind.
7
Protective gas re-
flux.
Press-roll cylinder in front.
8
Drawing pressure
Pressure regulator for adjusting the
pressure in display. Adjustable
force of press rolls on the drawn
material.
9
Drawing roll
With rotating the long end to the left
the rolls will be pressed on the
strand. The rolls are free with mov-
ing the long end to the right.
Pressure Draw Roll
< Drawing roll >
< pressed
loose >
