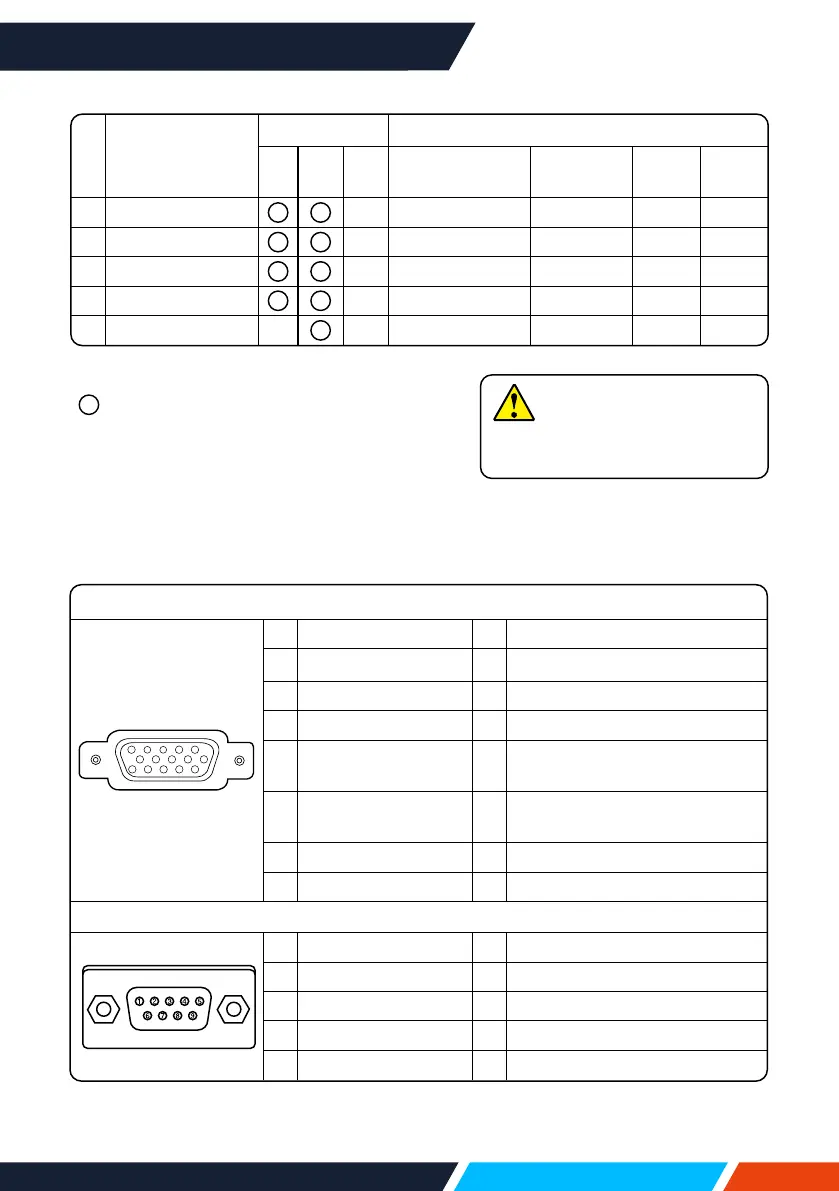

Appendix
103
“ ”showsinputsignalsourcesupportthis
format.
“—”showsinputsignalsourcedonotsupport.
No OSDDisplay
Source Specication
RGB HDMI Video Resolution
Pixelclock
(MHz)
H-freq
(KHz)
V-freq
(Hz)
53 1600x1200,60Hz
—
1600x1200 162.000 75.000 60.000
54 1680x1050,60Hz
— 1680x1050 146.250 65.290 59.954
55 1920x1080,60Hz
— 1920x1080 138.500 66.587 59.934
56 1920x1200,60Hz
— 1920x1200 154.000 74.038 59.950
57 3840x2160,30Hz
—
—
3840x2160 297.000 67.500 30.000
Note
Changestothismanualmaybe
madewithoutnotice.
Terminal conguration
VGAIN/MONITOROUTTerminal(D-sub15)
5
1
2
34
10
9 678
15
14
13
1112
1 Red(Input,output) 9 -----
2 Green(Input,output) 10 Grounding(eldsynchronizing)
3 Blue(Input,output) 11 Grounding
4 ----- 12 DDCdata
5
Grounding
(linesynchronizing)
13
Horizontalsynchronizing
(compoundsync.)input/output
6 Grounding(red) 14
Verticalsynchronizing
input/output
7 Grounding(green) 15 DDCClock
8 Grounding(blue)
SERIALTerminal(D-SUB9)
1 ----- 6 -----
2 RXD 7 -----
3 TXD 8 -----
4 ----- 9 -----
5 GND

InFocus LightPro IN1004 Specifications

General

Native aspect ratio	4:3
Projection distance	0.88 - 10.9 m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Vertical synchronization (max)	0.085 kHz
Vertical synchronization (min)	0.048 kHz
Horizontal synchronization (max)	100 kHz
Horizontal synchronization (min)	15 kHz
Lamp type	UHP
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	20000 h
Focus	Manual
Offset	14 %
Zoom capability	Yes
Focal length range	19.11 - 22.94 mm
Full HD	No
Supported video modes	2160p
Supported graphics resolutions	3840 x 2160
HDMI version	1.4
HDMI connector type	Full-size
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	32 dB
Certification	CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS WEEE, EU RoHS, China RoHS, CEL, CECP
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	300 W
Power consumption (standby)	0.5 W
Power consumption (typical)	- W
Power consumption (PowerSave)	150 W
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Remote control type	IR

Weight and Dimensions

Depth	99 mm
Width	345 mm
Height	261 mm
Weight	3100 g
