User Manual for the Thermographic System VarioCAM
®
high resolution
8. Operation
User Manual © InfraTec GmbH 2013 51

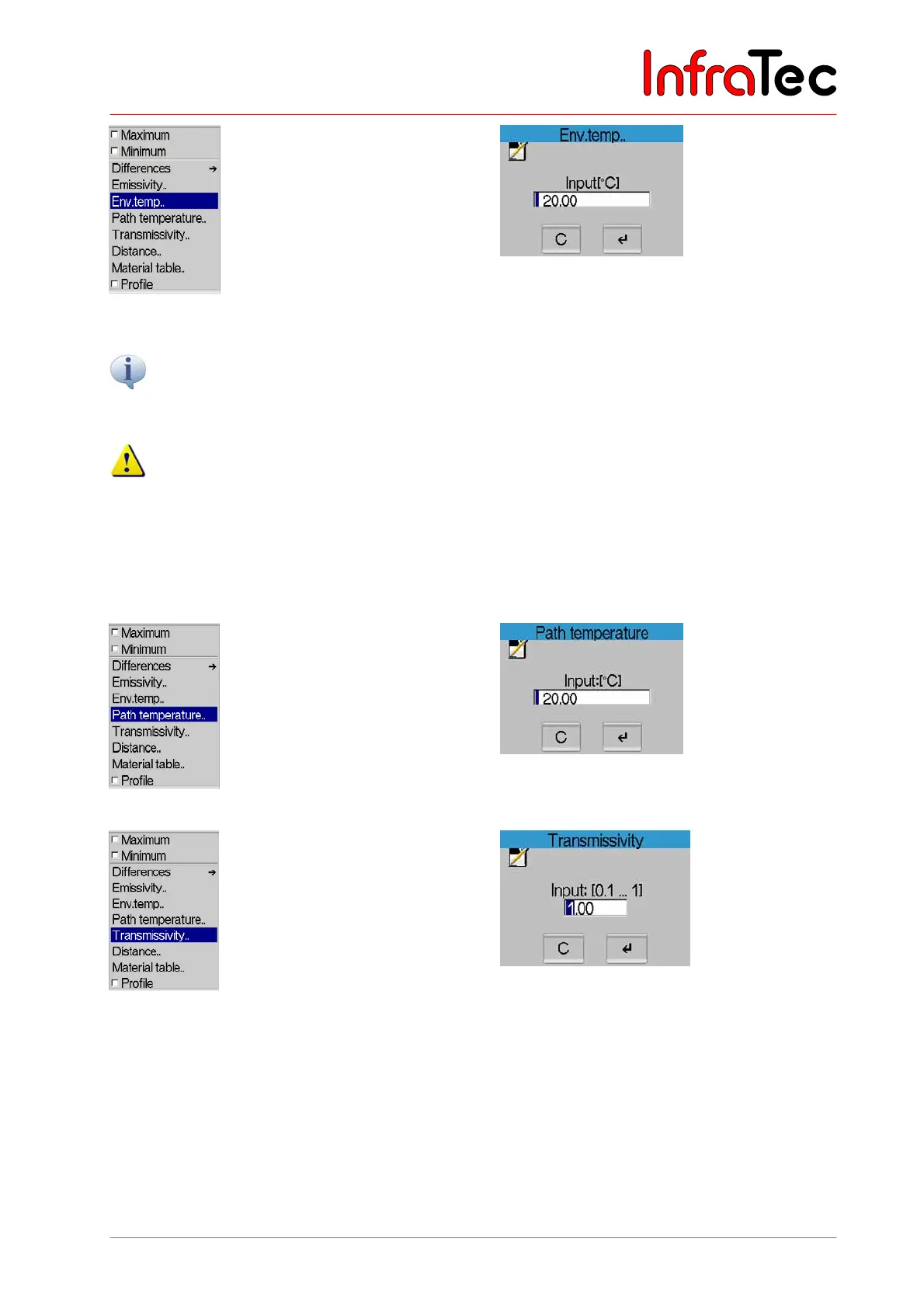

Fig. 101 Menu "Measure" - "Env.temp.." Fig. 102 Dialogue "Env.temp."
The ambient temperature is the temperature which the thermographic system detects via the more or less
reflecting object to be measured. This temperature is not necessarily equal to the temperature of the
thermographic system itself or that of its immediate environment.
A reduction of the emissivity below 1.00 will result in an effect of the ambient temperature onto the
measured result. Therefore, it must be determined and entered in such a case at any rate.
Example: A low ambient temperature (e.g. cold night sky) makes a reflecting measuring object (e.g.
windows in a house) appear colder to the thermographic system than it actually is. In the thermal image,
windows (of lesser heat insulation) may at first sight appear colder – allegedly better heat-insulated – than
the better insulated facçade.
Fig. 103 Menu "Measure" - "Path temperature.." Fig. 104 Dialogue "Path temperature"
Fig. 105 Menu "Measure" - "Transmissivity.." Fig. 106 Dialogue "Transmissivity"
