II. Connecting the terminal
This section describes the different connections required for the device to operate correctly.
1. Connect the communication cable(s) (based on the installation type)
A single connection is needed at the back of the FLEX PIN pad, regardless of the
communication mode used to the Point-of-sale System and to the Desjardins host. The type of
cable used, however, differs depending on the context.
N.B. The FLEX PIN pad permits only IP connection to the Desjardins host.
o Serial connection to the Point-of-sale System

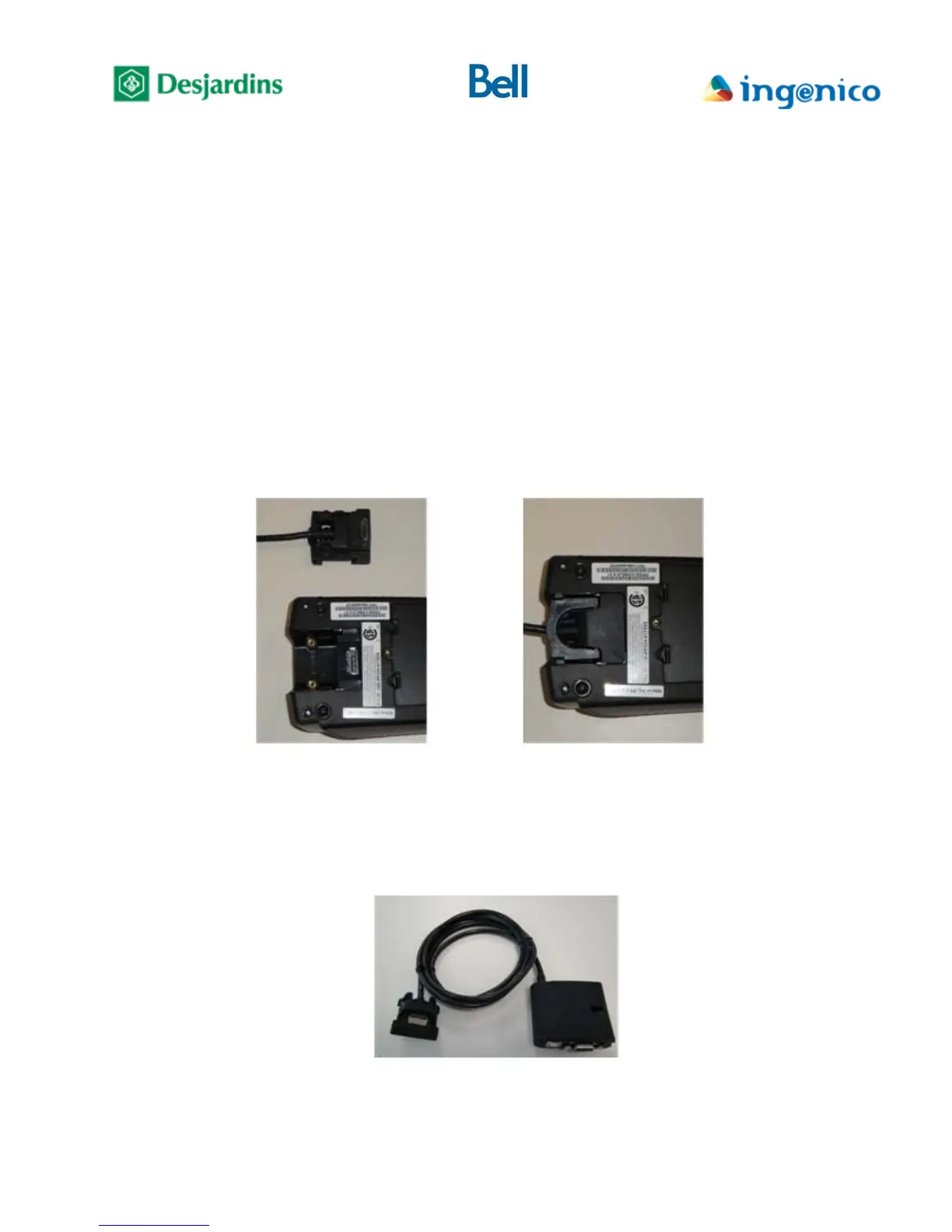

• The PIN pad must first be connected to a special adaptor called “Magic box”
(part number 296121027). This adaptor has several interfaces, thus allowing for
different types of connection to the Point-of-sale System and to the host.
