InHand VG710 InVehicle Gateway User Manual
42

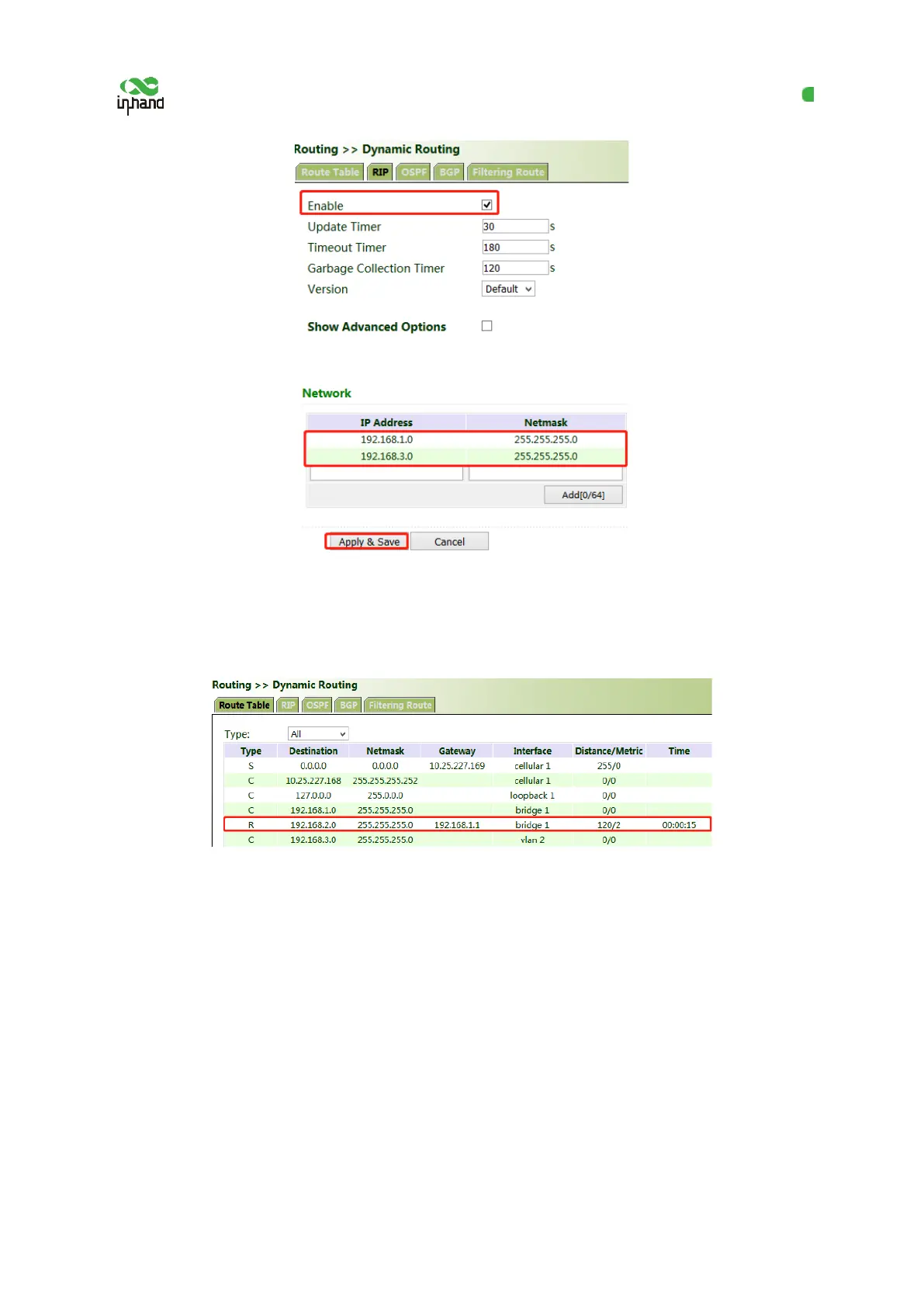

3. After the configuration is completed, check whether PC 1 can communicate with PC 2. If yes, the
dynamic route is added successfully. The RIP route learned by VG710_B is shown in the figure
below.
5.6.2.2 OSPF
The Open Shortest Path First (OSPF) protocol is a link-status-based internal gateway protocol mainly
used on large-scale networks.
Method for enabling dynamic routing between VG710_A and VG710_B over OSPF in the
scenario:
1. Configure VG710_A. Click "Routing >> Dynamic Routing >> OSPF", check "Enable", enter a
valid IP address for "Router ID", and configure VG710_A in the "Network" bar to announce the
routing entry of VG710_A.
