InHand VG710 InVehicle Gateway User Manual
45

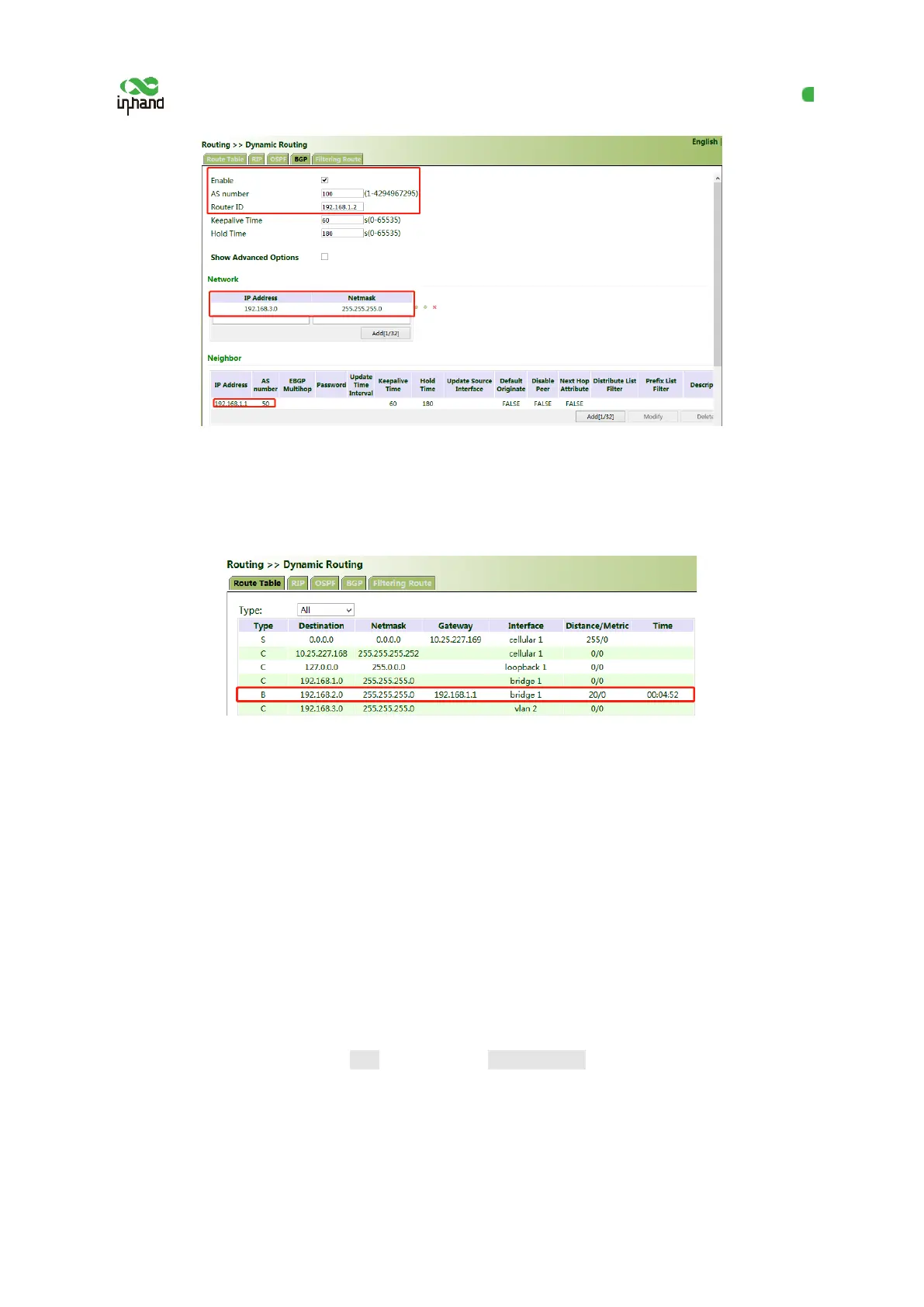

5. After the configuration is completed, check whether PC 1 can communicate with PC 2. If yes, the
dynamic route is added successfully. The BGP route learned by VG710_B is shown in the figure
below.
5.7 Link Backup
5.7.1 SLA
The service level agreement (SLA) is used to detect whether the link between the gateway and the ISP
fails.
Method for adding an SLA entry for the gateway:
Click "Link Backup >> SLA >> Add", enter the detected IP address for "Destination Address", set
other parameters as required, click Add, and then click Apply & Save.
Timeout (ms) indicates the duration for determining a detection failure. Consecutive indicates the
number of detection failures resulting in a link failure.
