State: Note Reject
0
10
20
30
40
50
60
0
0.5
1
1.5
2
2.5
3
3.5
0.000 0.500 1.000 1.500 2.000 2.500 3.000 3.500
Energy (J)
Current (A)
Time (seconds)

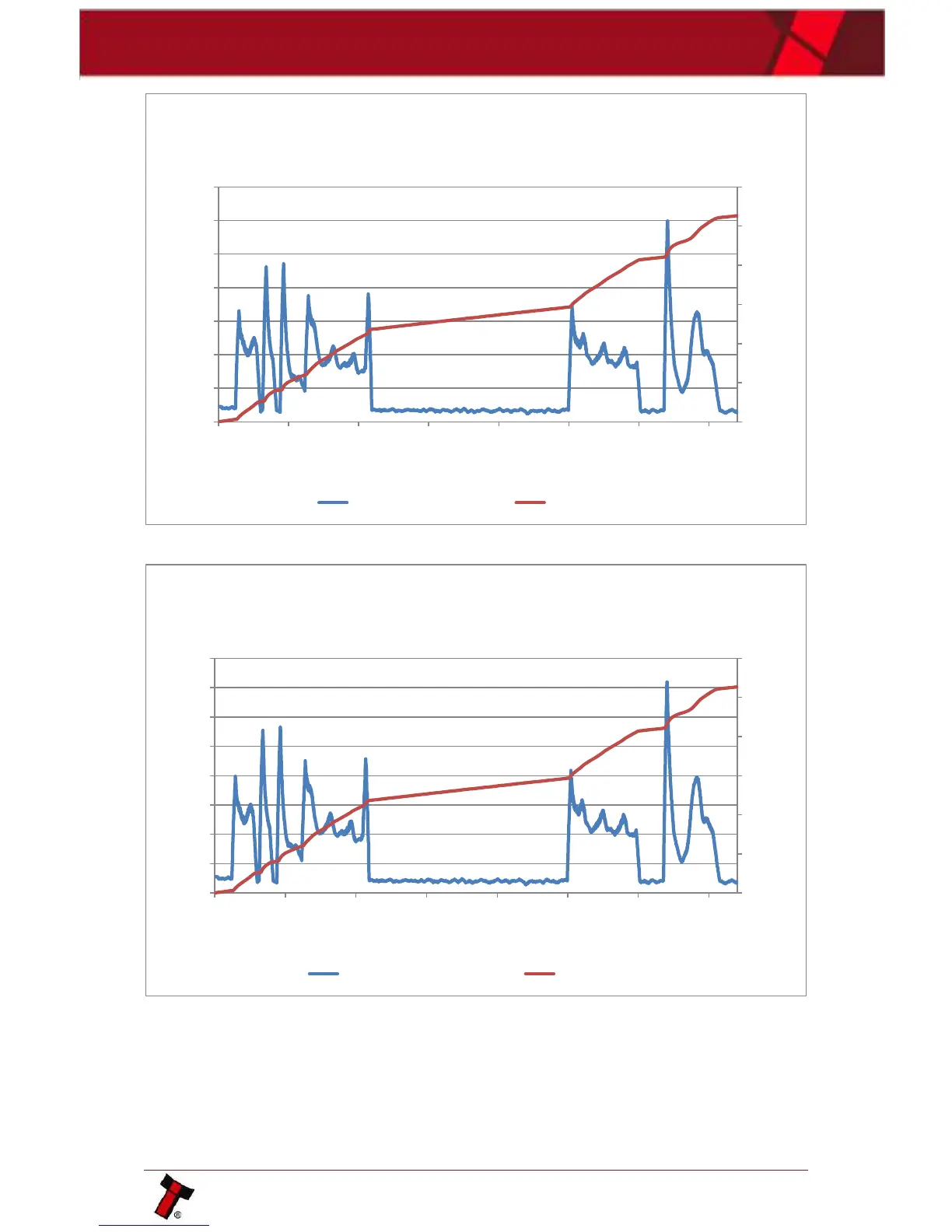

Note insertion and acceptance with full TEBS
bag
Current Average (25ms) Energy Used (J)
0
10
20
30
40
50
60
0
10
20
30
40
50
60
70
80
0.000 0.500 1.000 1.500 2.000 2.500 3.000 3.500
Energy (J)
Power (W)
Time (seconds)
Note insertion and acceptance with full TEBS
bag
Power (W) Average (25ms) Energy Used (J)
