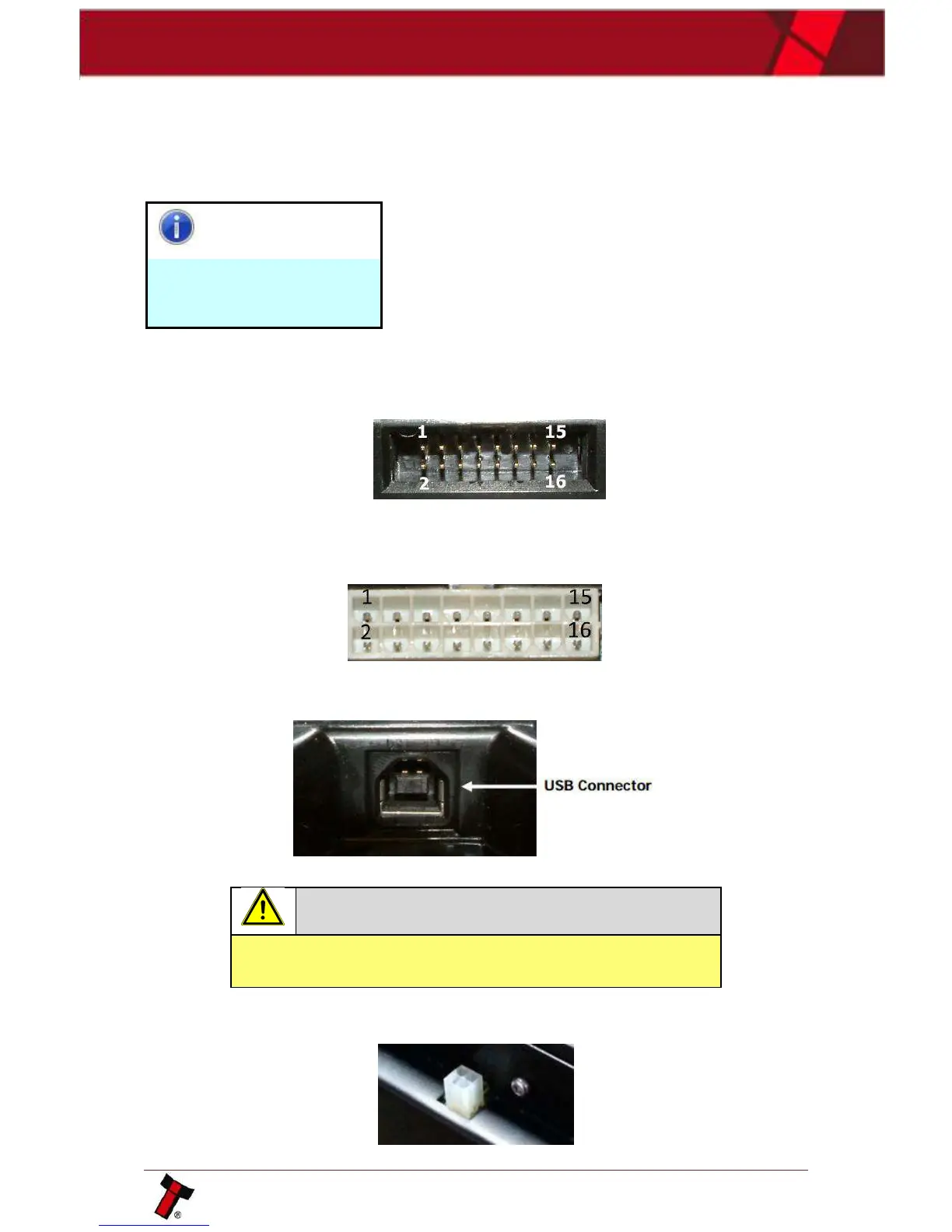

2.4.1 Interface connectors
The NV200 validator has two connectors for interfacing and programming; these
connectors are easily accessible at the back of the validator.
Information
Power is required
regardless of connection
type.
Regardless of the connector type being used
power is required on pins 15(+V) and 16(0V) of
the 16 way connector.
The first connector is a 16-pin Molex 9733272, used to interface the NV200 to the
host machine. The pin numbering of the socket is shown below:
When a Payout or Ticket Module is connected a 16-pin Molex 0039012165 connector will replace the
16-pin Molex 9733272, the Pinout is below:
There is also a standard Type ‘B’ USB socket which can be used for programming
the NV200 – a USB 2.0 compliant Type ‘A’ to ‘B’ lead can be used to do this.
Caution!
The USB connection is not recommended for continuous use
only for re-programming or troubleshooting.
The TEBS & Smart Ticket require an additional 4-pin Tyco 794954-4 power connector (CN389).
