NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 32 of 119
Pin
Name
Type
Description
1
Tx
Output
Serial Data Out (Tx)
4
Tx to Printer
Output
Serial Data Out (Tx) – PRINTER ONLY
5
Rx
Input
Serial Data In (Rx)
8
Rx to Printer
Input
Serial Data In (Rx) – PRINTER ONLY
15
+ Vin
Power
+12/24VDC Supply
16
0V
Power
0V Supply (GND)
5.2.3 Setup Examples
5.2.3.1 NV200

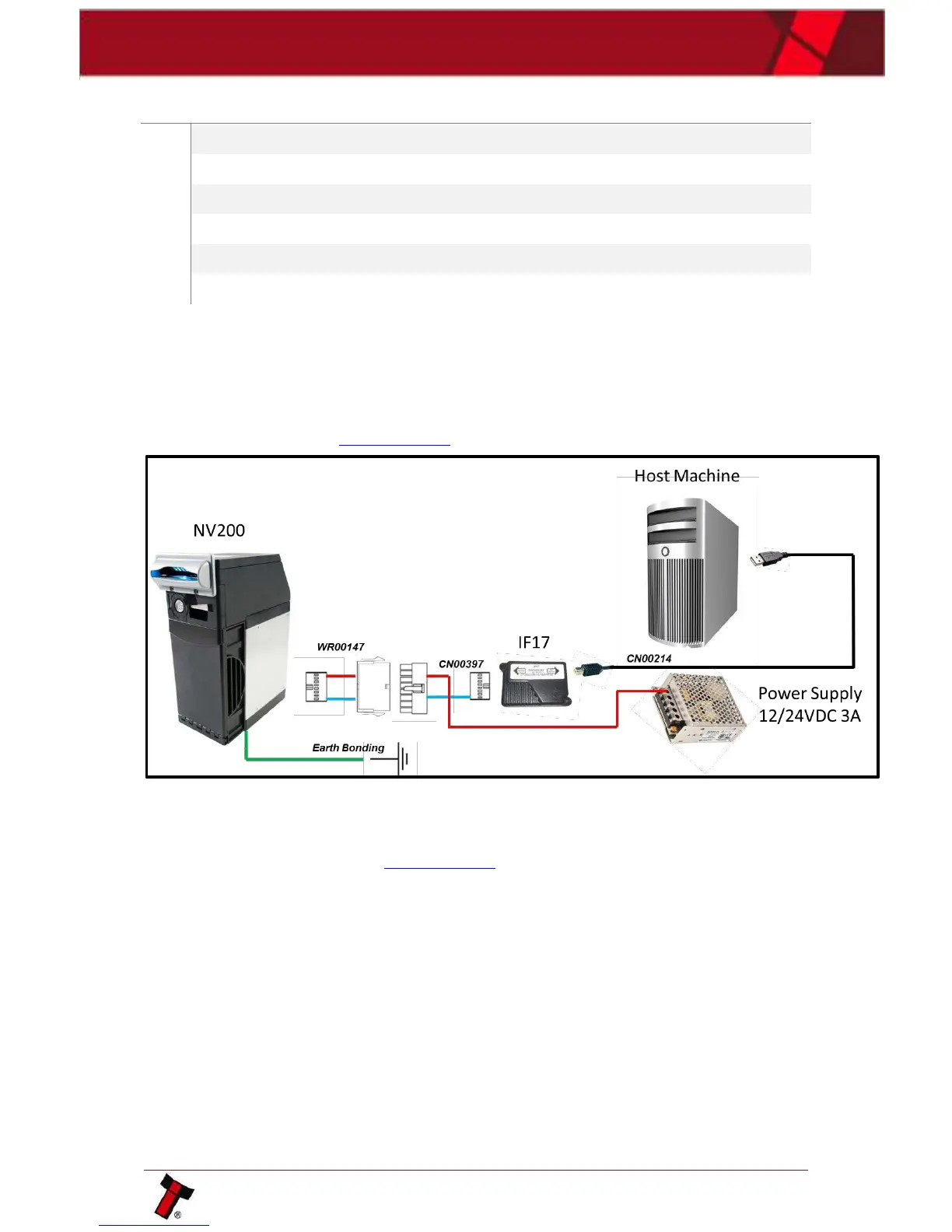

The drawing below highlights how to connect the NV200 to an SSP host machine
using available cables and interfaces from Innovative Technology Ltd. For cable
drawings please refer to Appendix 10.4.
5.2.3.2 NV200 – TEBS Cashbox
The drawing below highlights how to connect the NV200 TEBS to an SSP host
machine using available cables and interfaces from Innovative Technology Ltd. For
cable drawings please refer to Appendix 10.4.
