NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 35 of 119
5.2.3.6 NV200 TEBS with Ticket Module (TEBS SMART Ticket)

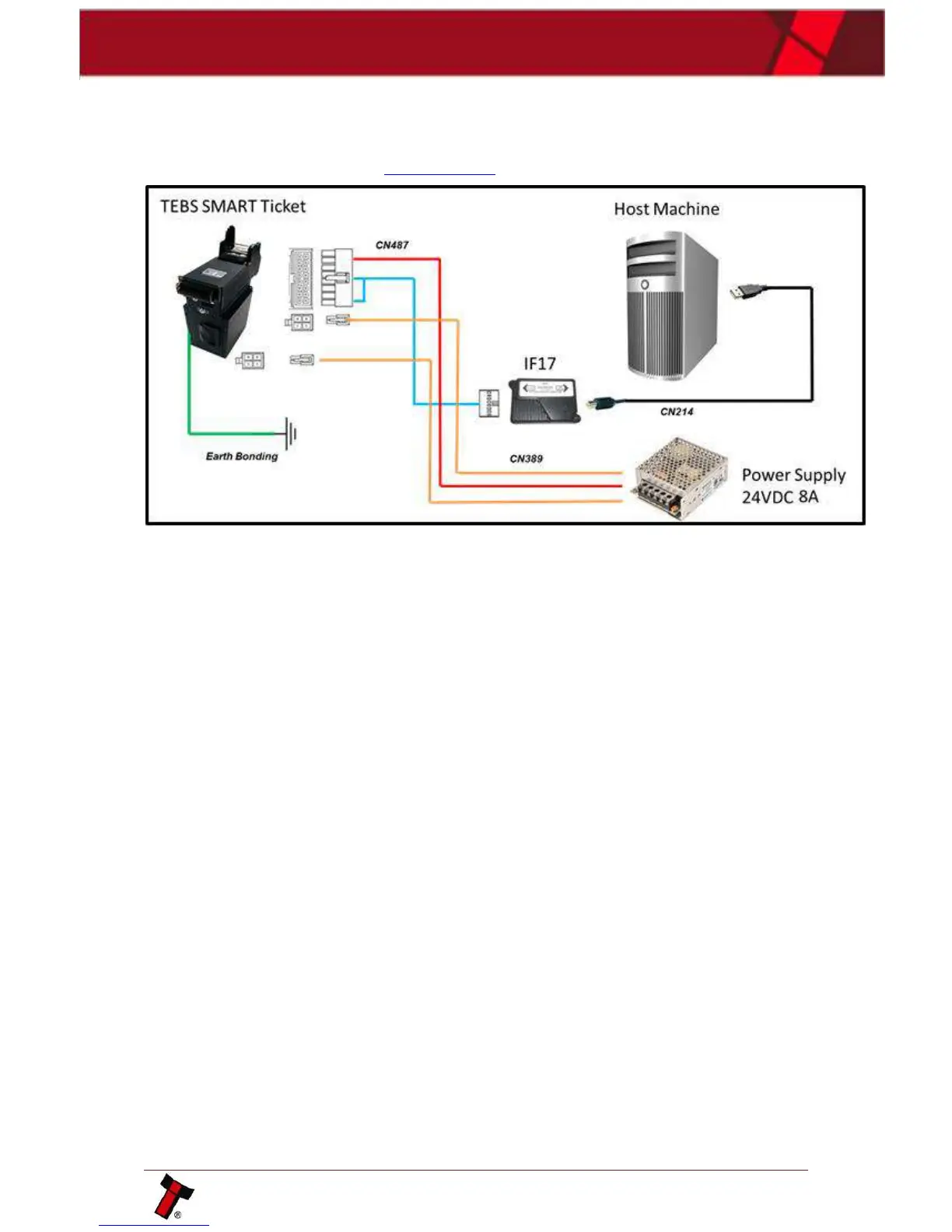

The drawing below highlights how to connect the TEBS SMART Ticket to an SSP host
machine using available cables and interfaces from Innovative Technology Ltd. For
cable drawings please refer to Appendix 10.4.
