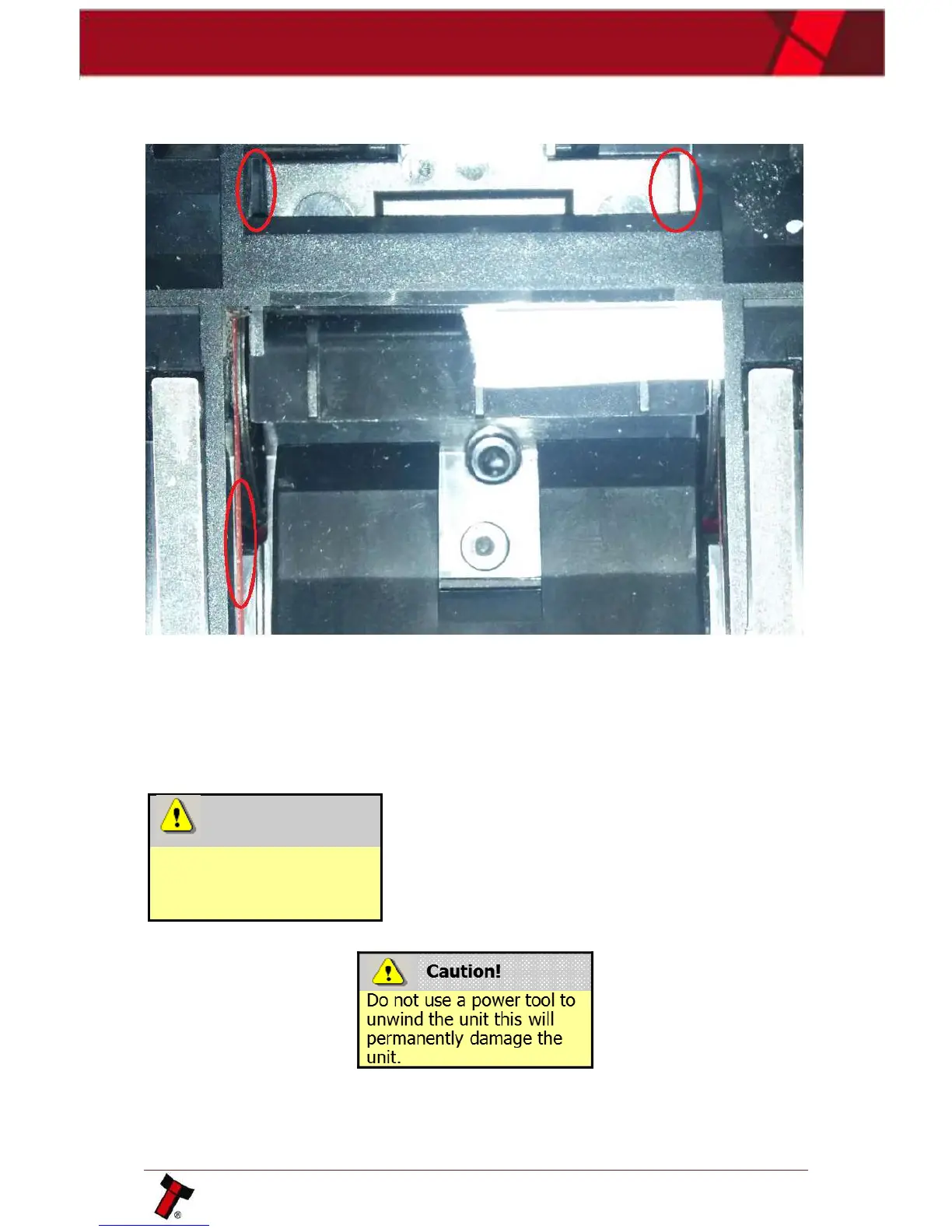

unit, this is evident due to the white reflection on the right when compared to the
left. Paper may also get stuck behind the belts if the note is forcibly removed.
9.2 Clearing a Jam from the Payout Module
In case of a Jam in a payout notes can be manually paid out. The Payout will need
to be removed from the NV200 by lifting the silver catch at the front of the NV200
and sliding it away from the cashbox, it is now possible to lift the payout module
away. The only tool required to carry out this process is a 5 mm Allen key.
Take great care not to overwind the mechanism or
force past the dead stops – if done the payout unit
will be damaged beyond repair.
