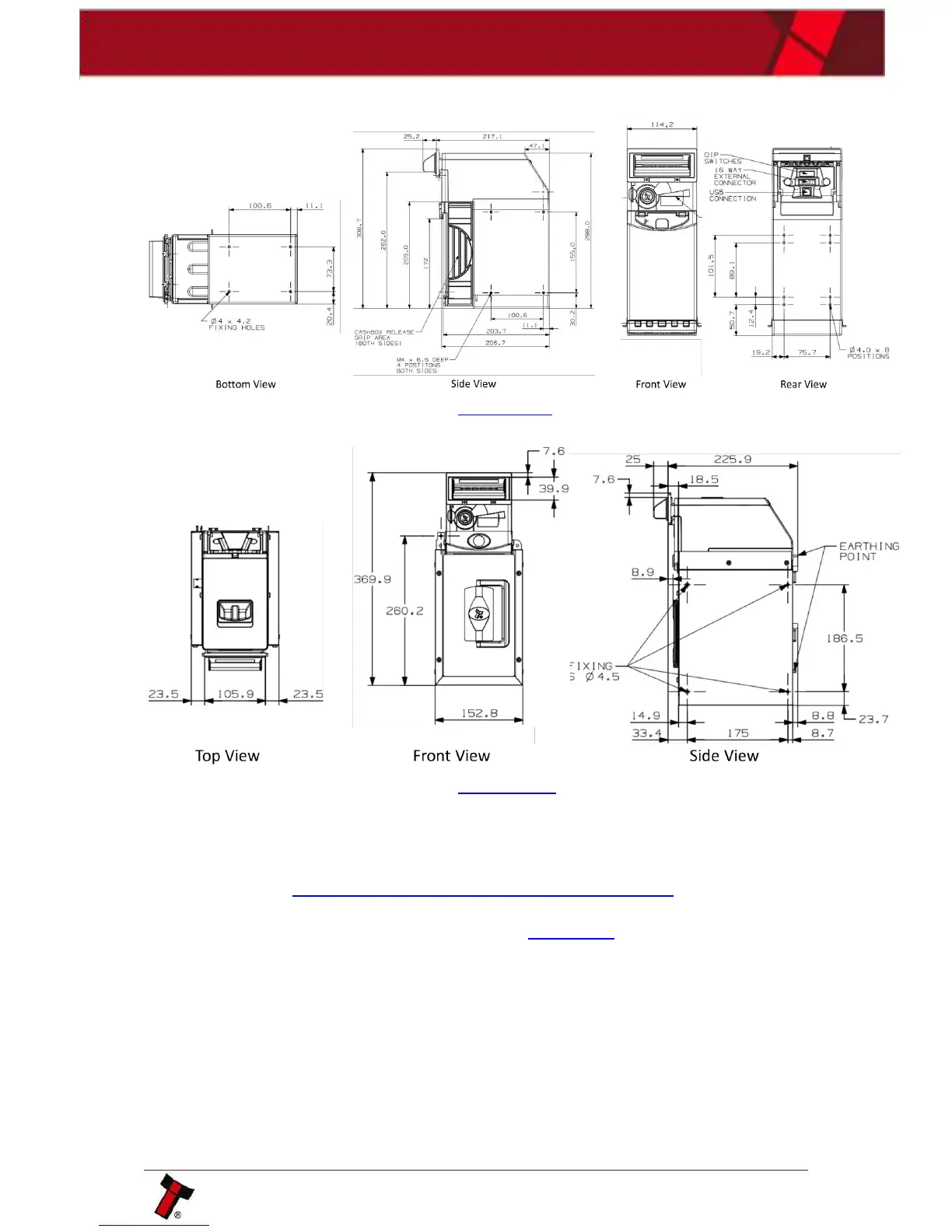

4.6.1 Machine Mounting - Standard Cashbox
A larger version of this drawing can be found in Appendix 10.1.
4.6.2 Machine Mounting – TEBS
A larger version of this drawing can be found in Appendix 10.1.
4.6.3 Things to consider
When mounting an NV200 there are several things to consider including:
• Smart ticket – minimum distance surrounding machine, details of which can
be found in Appendix Error! Reference source not found. along with l
arger versions of the NV200 and TEBS drawings.
• Weight of a fully loaded unit as defined in Section 3.4.
• Accessibility – ensure it is possible to reach all connectors and switches if
required.
• Cable management – to ensure no connectors are damaged/removed from
everyday use.
4.6.4 Earth Bonding
It is very important that the product is properly bonded to earth, using one of the
earth tabs. Earthing on the standard chassis can be affixed to any of the screw
mounting points at the side of the unit. Whereas with the TEBS cashbox there are
earthing points at the back of the chassis as shown below:
