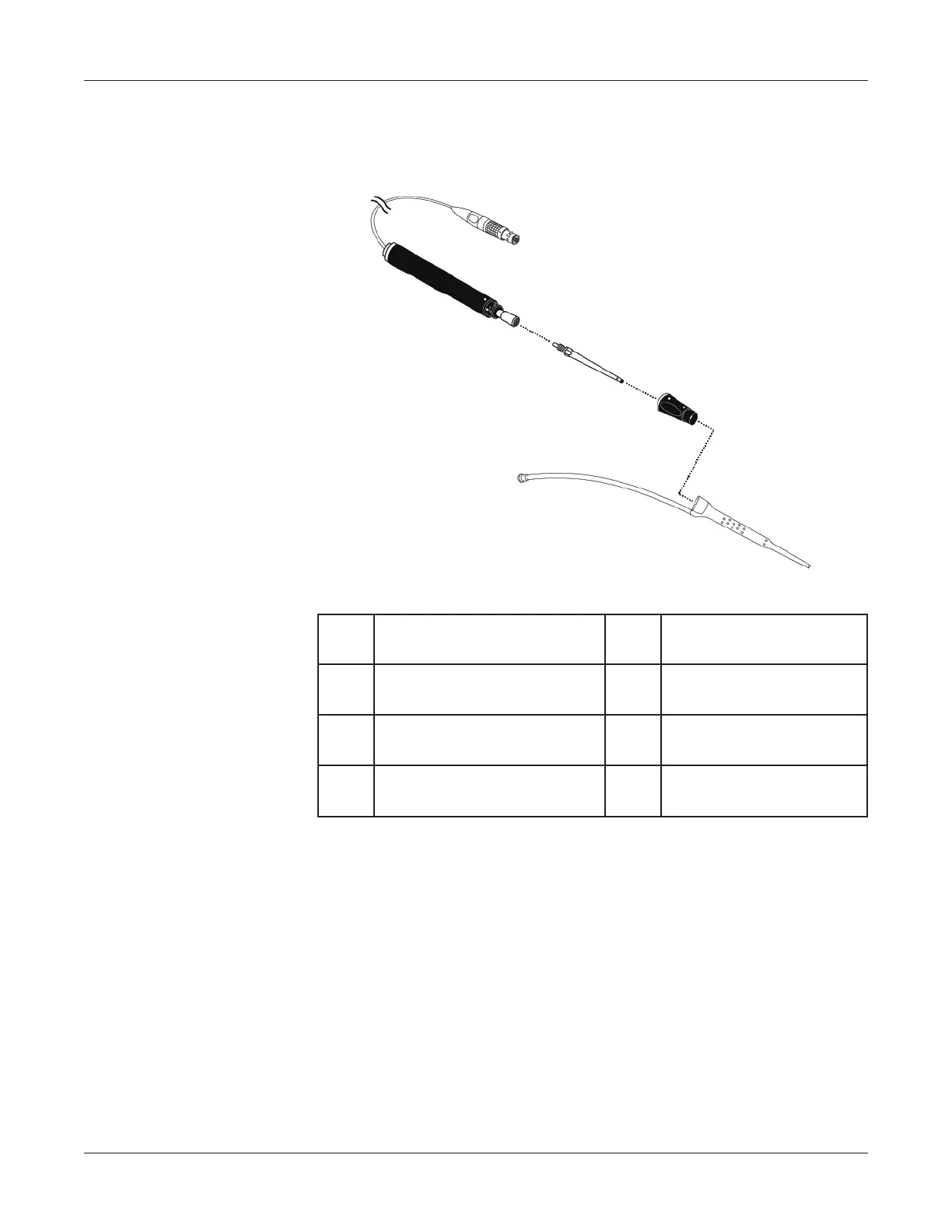

Components of Assembled Handpieces
Components of Assembled Handpieces
Handpiece
The handpiece body contains:
• Transducer to convert electric energy into mechanical motion
• Aspiration port to connect the aspiration tubing to the handpiece
The handpiece cable contains:
• Electric wires (deliver electric power from console to drive the
handpiece)
• Connector that attaches the handpiece cable to the console
The connecting body serves as the connecting point for the tip and
transfers the vibrations from the transducer to the tip.
➀
➁
➂
➃
➄
➅
➆
➇
➀
Handpiece Body
➄
Tip
➁
Handpiece Cable with
Connector
➅
Nosecone
➂
Aspiration Port
➆
Flue
➃
Handpiece Connecting Body
➇
Flue Luer Lock Fitting
