Connections
En-14

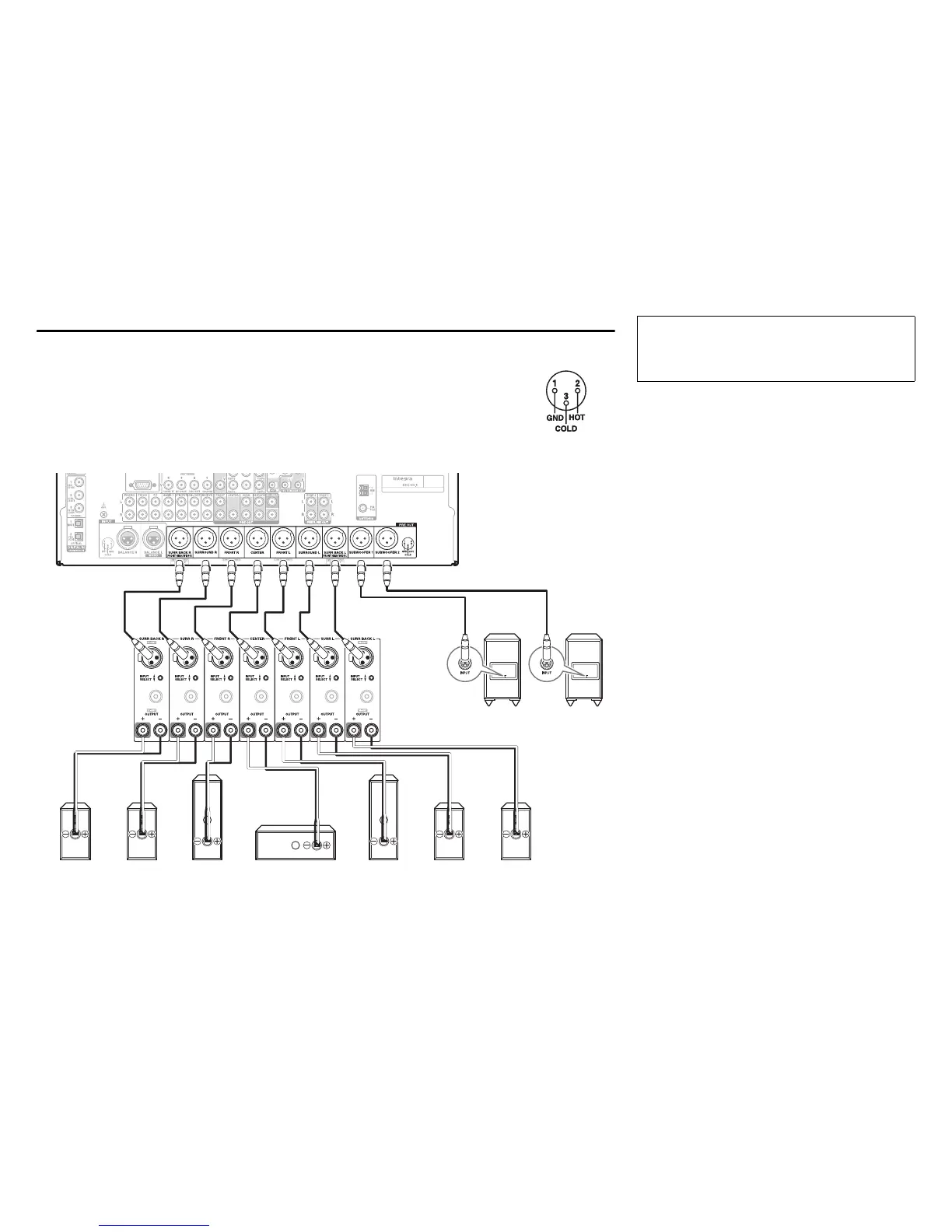

Connecting a Power Amplifier/Powered Subwoofers via XLR Jacks
You can connect the AV controller to a multichannel power amplifier via balanced XLR jacks by using several
XLR audio cables.
The AV controller’s balanced PRE OUT jacks are wired as shown.
See your multichannel power amplifier’s instruction manual for more information on
connecting speakers.
Please connect a , b , c , d , e and f for 5.1-channel surround.
If you’re using only one surround back speaker, use the left jack.
Surround
speaker R
e
Surround
speaker L
d
Surround back,
Front high or Front
wide speaker L
G, I, K
Front
speaker L
a
Front
speaker R
b
Center speaker
c
Surround back,
Front high or Front
wide speaker R
H, J, L
Powered
subwoofer
f
Powered
subwoofer
f
AV controller
Multichannel
power amplifier
•
By default, speakers for 7.1-channel surround are
configured to use: front right/front left/center/surround
right/surround left/surround back right/surround back
left/subwoofer.
Before connecting the power cord, connect all of
your speakers and AV components. A setup wizard
is launched upon first-time use to let you perform
the settings (➔ page 25).
