VIAFLO 96/384 – Operating instructions V11 Installation
12 INTEGRA Biosciences AG
3 Installation
3.1 Operating environment
VIAFLO 96/384 has been designed for use in a laboratory. It shall be operated in a dry and
dust-free location with a temperature of 5–40 °C and a maximal (non-condensing) relative
humidity of 80 %.
3.2 Setting up and moving of the instrument
The VIAFLO 96/384 must be set up on a cleaned, dry and horizontal surface.
.
WARNING
The device must not be carried on the control unit because it will be
damaged.
Leave at least 5 cm of free space on the back for air circulation and to allow easy
connection of the mains cable.
W
ARNING
It must always be possible to manually disconnect the plug of the VIAFLO 96/
384 from electricity supply. The corresponding socket shall be within easy
reach of the operator and be clearly labeled as the disconnecting device of
VIAFLO 96/384.
Only use a 3 core mains cable with protective earth to connect VIAFLO 96/384 with the
power source. The socket is located on the reverse side of the instrument deck.
Put the Plate holders (8
) on the Instrument deck (7) on Position A and/or B. They can
both be placed on either side. Move the Plate holder from left to right until the two bolts
click into the two holes.
Alternatively, put the three position stage on the Instrument deck (7
) until the bolts click
into the four holes, see “8.1 Accessories” on page 55).

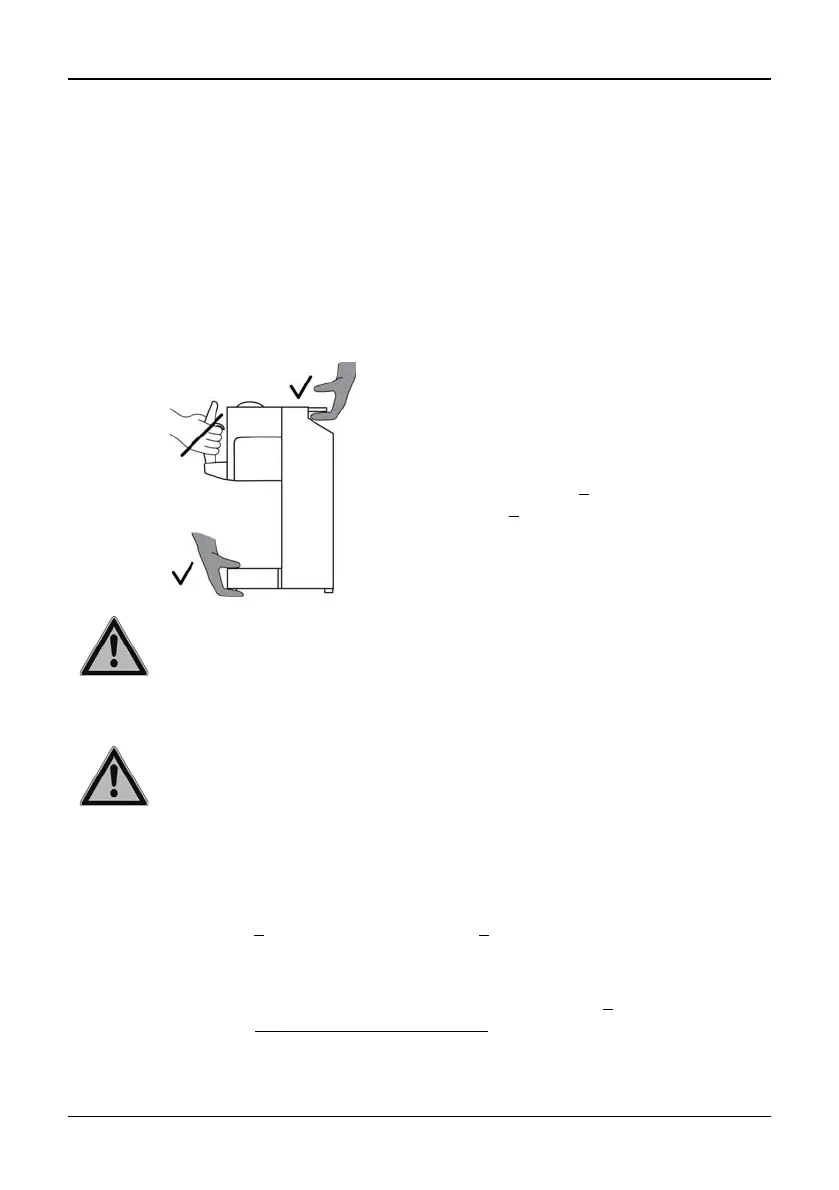

Hold the Carrying handle (2
) and the
Instrument deck (7
) to lift VIAFLO 96/384.
