2 Description of the device
2.1 Scope of delivery
• VIAFLO 96/384 device
• Power cable
• USB cable type A to B
• Operating instructions
C
AUTION
Verify the scope of delivery when unpacking the device and check for
potential transportation damage. Do not operate a device that is damaged,
instead contact your local dealer.

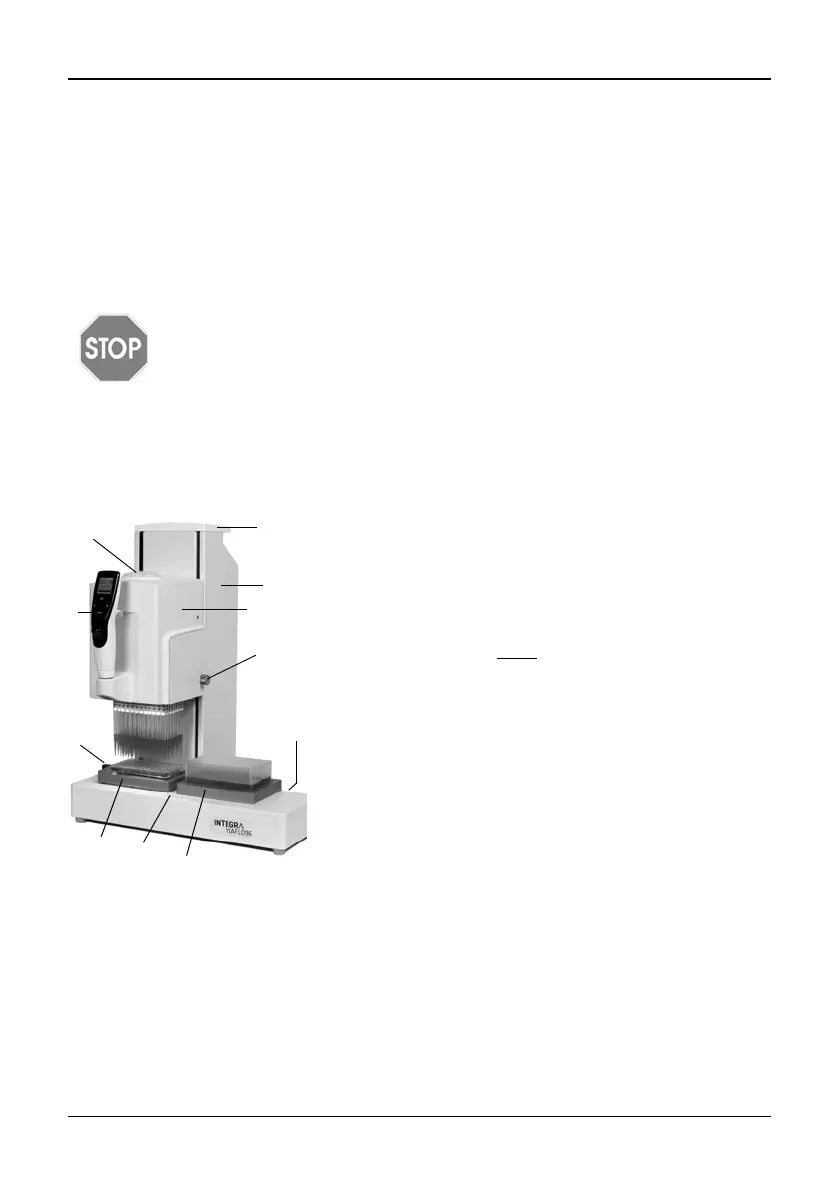

2.2 Overview of VIAFLO 96/384
2.2.1 VIAFLO 96/384 device
1 Base unit, to move left and right (X axis)
2 Carrying handle of base unit
3 Pipetting unit, to move up and down (Z axis)
4 Tip load button
5 Control unit, see 2.2.2
6 Knob of Side cover, covers the pipetting head
7 Instrument deck
8 Plate holders on position A and B
9 Plate slider, with front (384), zero (96) and back
(384) position to index 96 or 384 well plates (Y axis)
10 Main switch
4
5
8 A
8 B
10
6
1
2
9
3
7
