Intellian v100NX - Option 2. When Placing Cable Outside Mast

20
Planning Installation
1000 mm (39.37")
840 mm (33.07")
200 mm (7.87")
Min. 10 mm (0.39")
Max. 20 mm (0.78")
ø22 mm (0.86")
4- ø13 mm (0.51")
247.5 mm (9.74")
247.5 mm (9.74")
BOW
ø254 mm (10")
Option 2. When Placing Cable Outside Mast

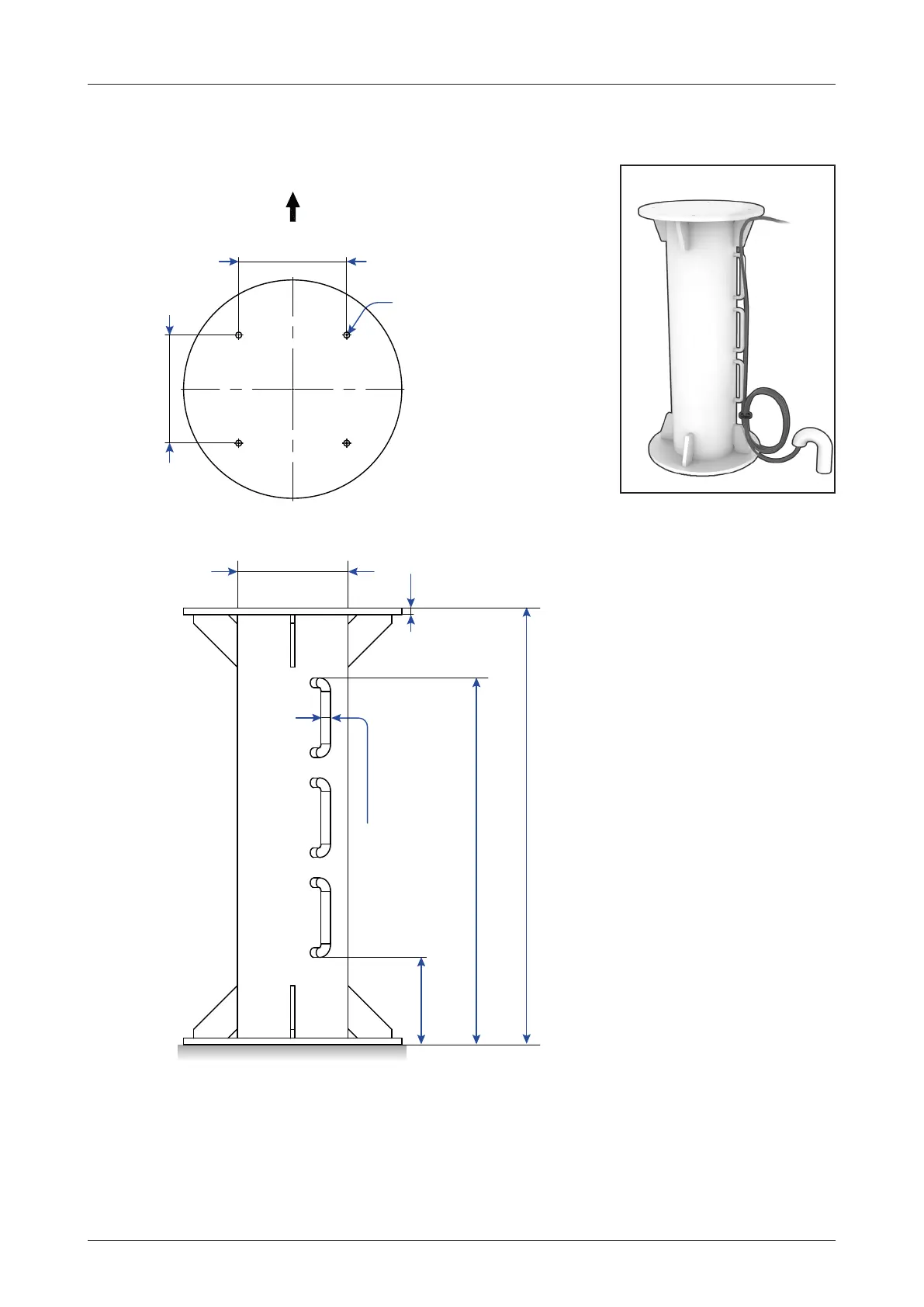

Figure: Recommended Size of Mast (Option 2)
