Operating ACU
DIAGNOSIS
DIAG ALL
SNR F:12.490/11.300 RX:H TX:V
TRACKING 062.2 E
HDG:120.4
GPS:
P

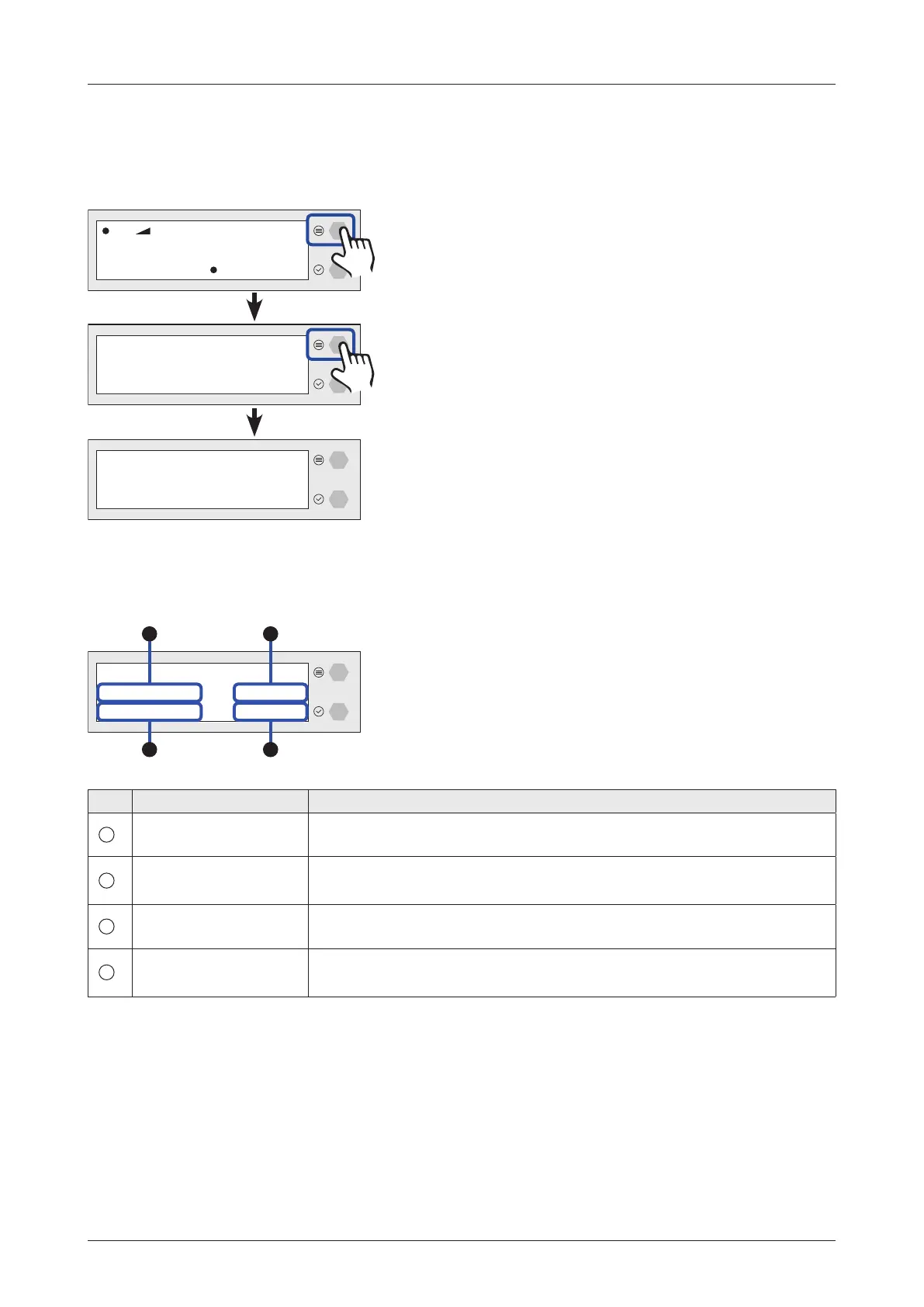

Antenna Information
Displays the Antenna/ACU serial number, PCU/STAB/ACU/i-ARM Version of the product.
PRODUCT : XXXXXXX
ANT: V0918070001 VER 1.00/1.00
ACU: V0918070001 VER 1.00/1.00
Press
Move Key
Press
Move Key
Refer to the Antenna Information display.
No. Item Description
1
Antenna Serial Number
Displays the Antenna serial number. The serial number is displayed
depending on the product.
2
PCU Version/
STAB Version
Displays the PCU version / Stabilizer version.
3
ACU Serial Number
Displays the ACU serial number. The serial number is displayed depending
on the product.
4
ACU Version/
i-ARM Version
Displays the ACU version / i-ARM version.
PRODUCT : XXXXXXX
ANT: V0918070001 VER 1.00/1.00
ACU: V0918070001 VER 1.00/1.00
3 4
21
ü Main Display
ü Diagnosis Display
ü Antenna Information Display
(The "XX..." is the model name, and the "xxxx..." is
antenna/ACU serial number. )
