Installing ACU

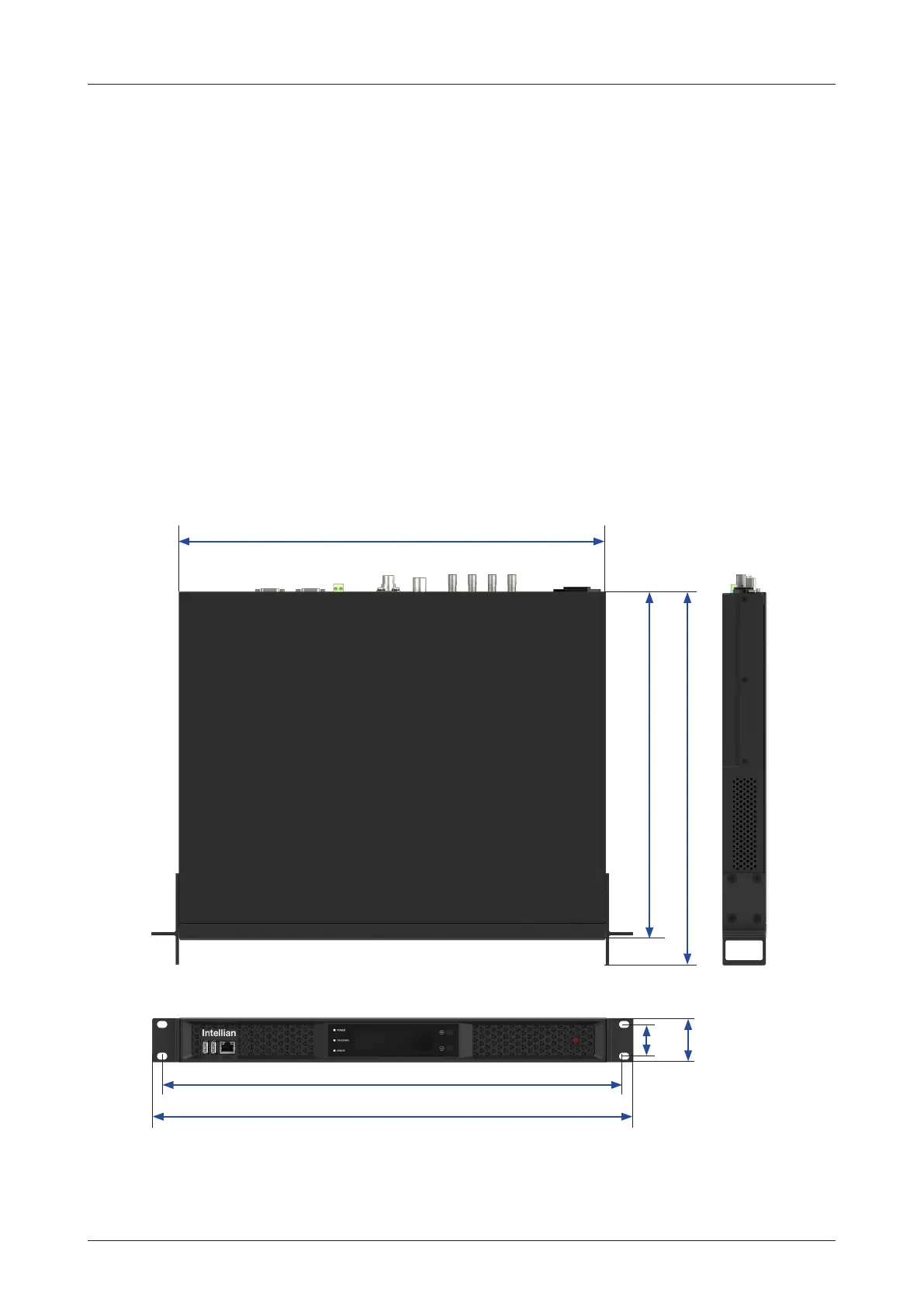

Figure: ACU Dimensions
350 mm (13.77") 376 mm (14.80")
32 mm (1.25")
44.3 mm (1.74")
466 mm (18.34")
431 mm (16.96")
485 mm (19.09")
ACU Dimensions
Conrm the dimension of the ACU before installing it.
Installing ACU
Selection of ACU Installation Site
The ACU should be installed below deck, in a location that is:
• Dry, cool and ventilated.
• The front panel should be easily accessible to users.
