Installing ACU
Mounting ACU
Intellian supplies 19" Rack Mounting Brackets to mount the ACU in a rack.
19" Rack Mount Type
The ACU should be installed using the two supplied 19" Rack Mounting Brackets. Using the Flat Head Screw
supplied, attach the mounting brackets to the sides of the ACU. Place the ACU in the location where it is
going to be installed. Connect the cables to the rear of the ACU.
WARNING
WARNING
Ensure that the cables connected to the ACU are long enough to prevent damage when the ACU is
pulled out from the rack.

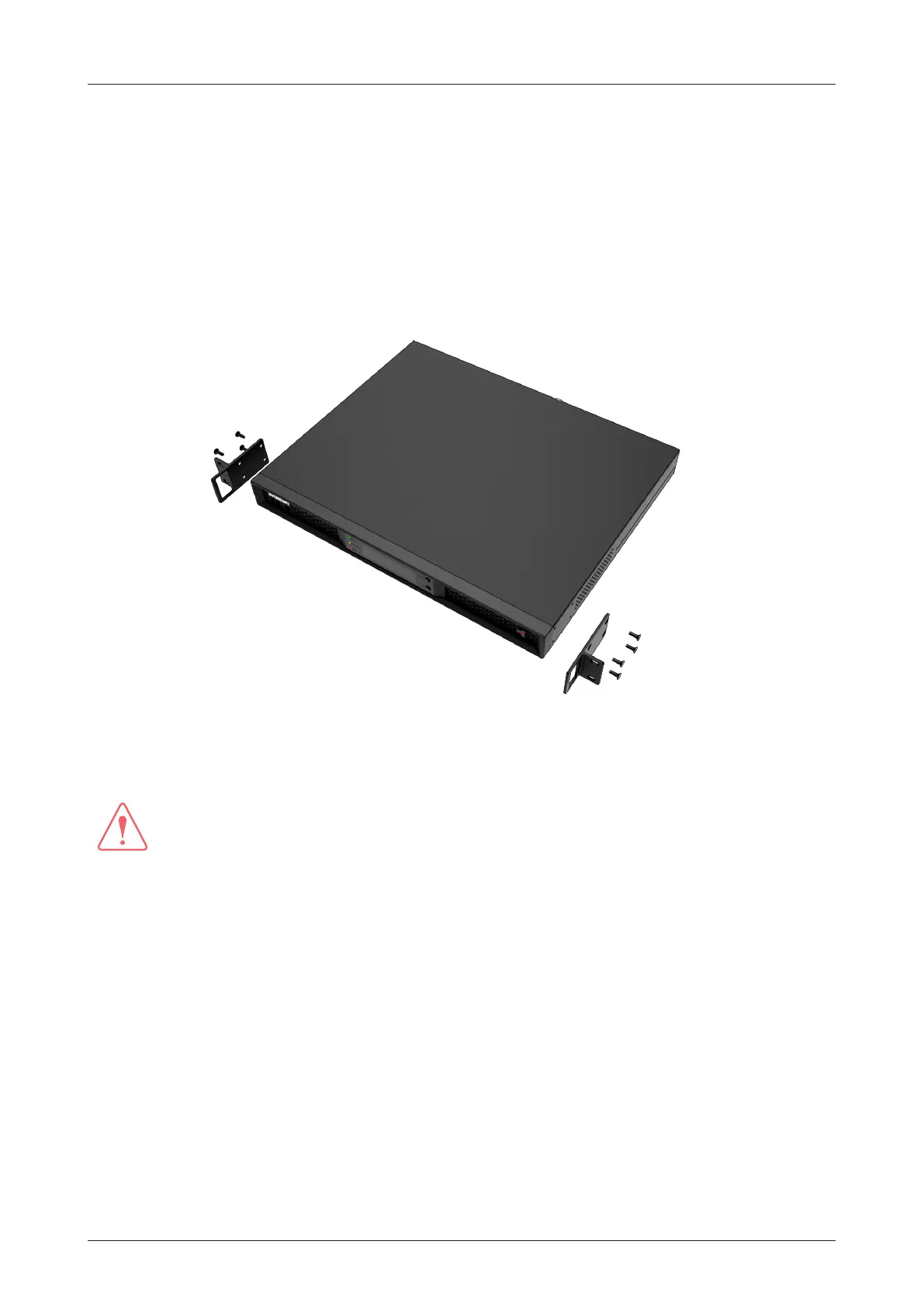

Figure: 19" Rack Mount Type ACU
