Installing ACU
PC
(Not supplied)
ACU to PC Communication Setup
You can establish data communication between the ACU and a PC the using one of the following methods.
TCP/IP Connection
Connection through Front Panel Management Port
The network is automatically congured by DHCP without the need for additional PC IP conguration.
1. Connect an Ethernet cable from the Management LAN port on the front of the ACU to the LAN port of PC.
2. The network connection is established automatically.
3. Use the following IP address to access Intellian AptusNX page.
• IP Address: 192.168.2.1 (Default)
Management LAN Port
ACU - Front Panel

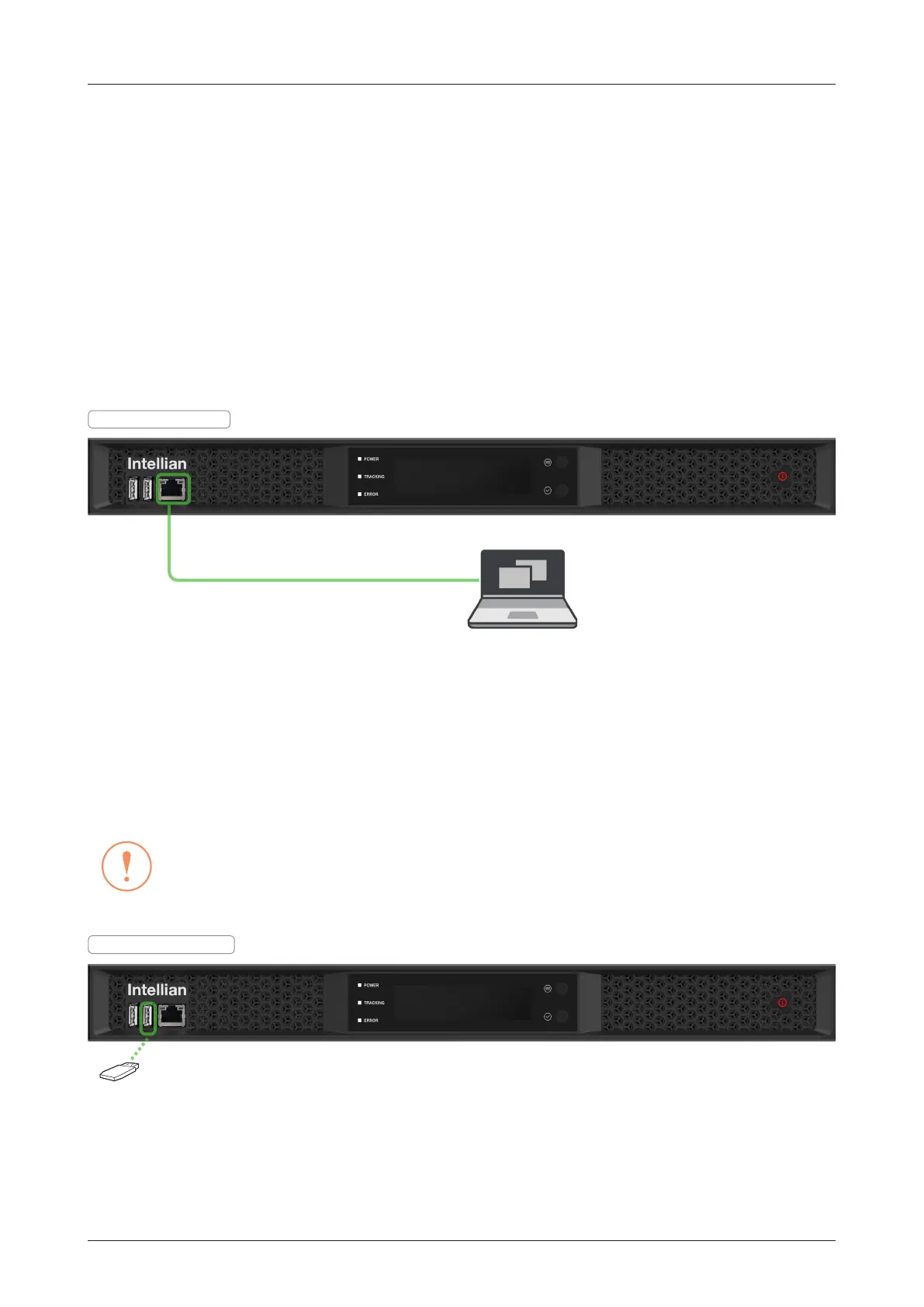

Figure: Front Panel Management LAN Port Connection
USB Connection:
Connection through Front Panel Right USB Port
The "Right USB port" just allows the USB device to be connected to each other for log download, backup/
restore antenna settings, and rmware upgrade. The "Left USB port" is only for a service engineer.
CAUTION
CAUTION
Make sure that the USB is connected to the "Right USB port" to communicate with the antenna. Do
not connect to the "Left USB port".
Figure: Front Panel Right USB Port Connection
ACU - Front Panel
Right USB port
USB
