Installing Antenna

5. Remove the xing screws (7 EA) from the remaining side panels, then detach the side panels.

5-35-25-1

: 7 EA

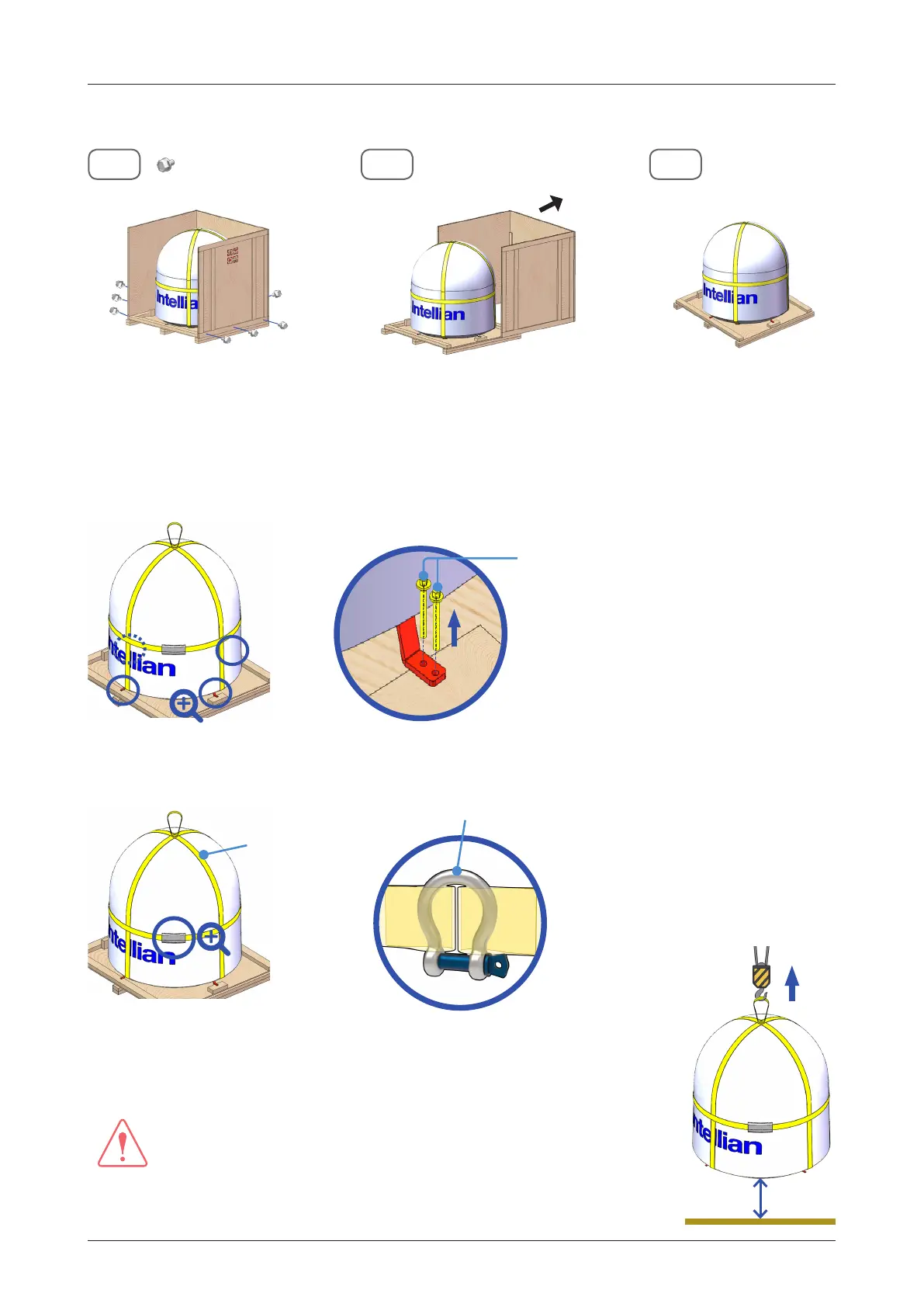

Removing Antenna from Wooden Crate

Four radome brackets secure the antenna to the pallet. To remove the radome bracket, follow the procedures

below.

1. Remove the hex head wrench bolt (2EA) on the radome bracket that secures the antenna to the pallet

using a wrench.

WARNING

• When lifting the antenna using the lifting straps, make

sure to remove the securing radome brackets to separate

antenna from the pallet.

• Be careful when lifting the heavy object. Incorrect

handling of the heavy object may lead to injury to the

installers and/or cause signicant damage to the unit.

2. Check the condition of lifting strap to make sure the shackles (2EA) are tightened. Re-wrap the shackles

with the existing protection to avoid radome damage.

Lifting Strap

Shackles (2EA)

Fixing Bolt

(2EA)

3. Lift the antenna above the bottom pallet using the crane, and maintain sufcient

space (max. 100 mm) to remove the shipping brackets.

Sufcient Space

(max. 100 mm)
