31
Installing Antenna

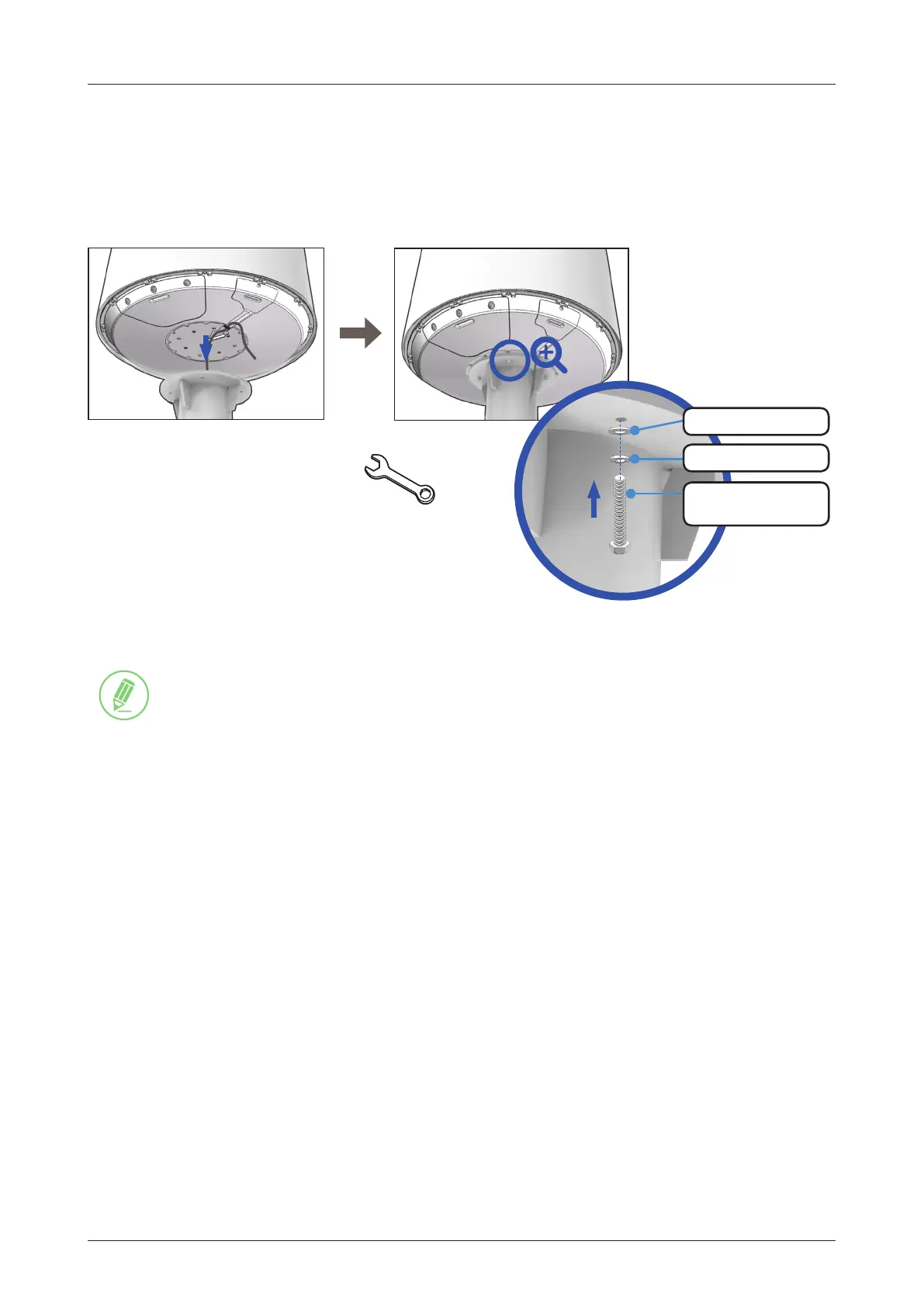

Mounting Radome
Bring the Bolt Kit (4EA) from the ACU box. Before assembling bolts, apply Loctite #263 to the bolt's threads
to ensure the bolts are fastened rmly. Insert the bolts and washers from under the mast into the radome,
and fasten them to the nuts assembled inside the radome. After mounting the antenna on the mast, remove
the lifting strap.
Use 18 mm Spanner/
Torque Wrench
M12 Flat Washer
M12 Spring Washer
NOTE
NOTE
• Make sure the cable from the mast is aligned with the cable entry of antenna bottom for a stable
connection.
• If the mast's surface thickness is greater than 20 mm, use a M12x100L Hex Bolt.
• To fasten the M12 bolts use a torque setting of 110 Nm.
M12 x 80 L
Hex. Bolt (BUMAX)
To Next Page
