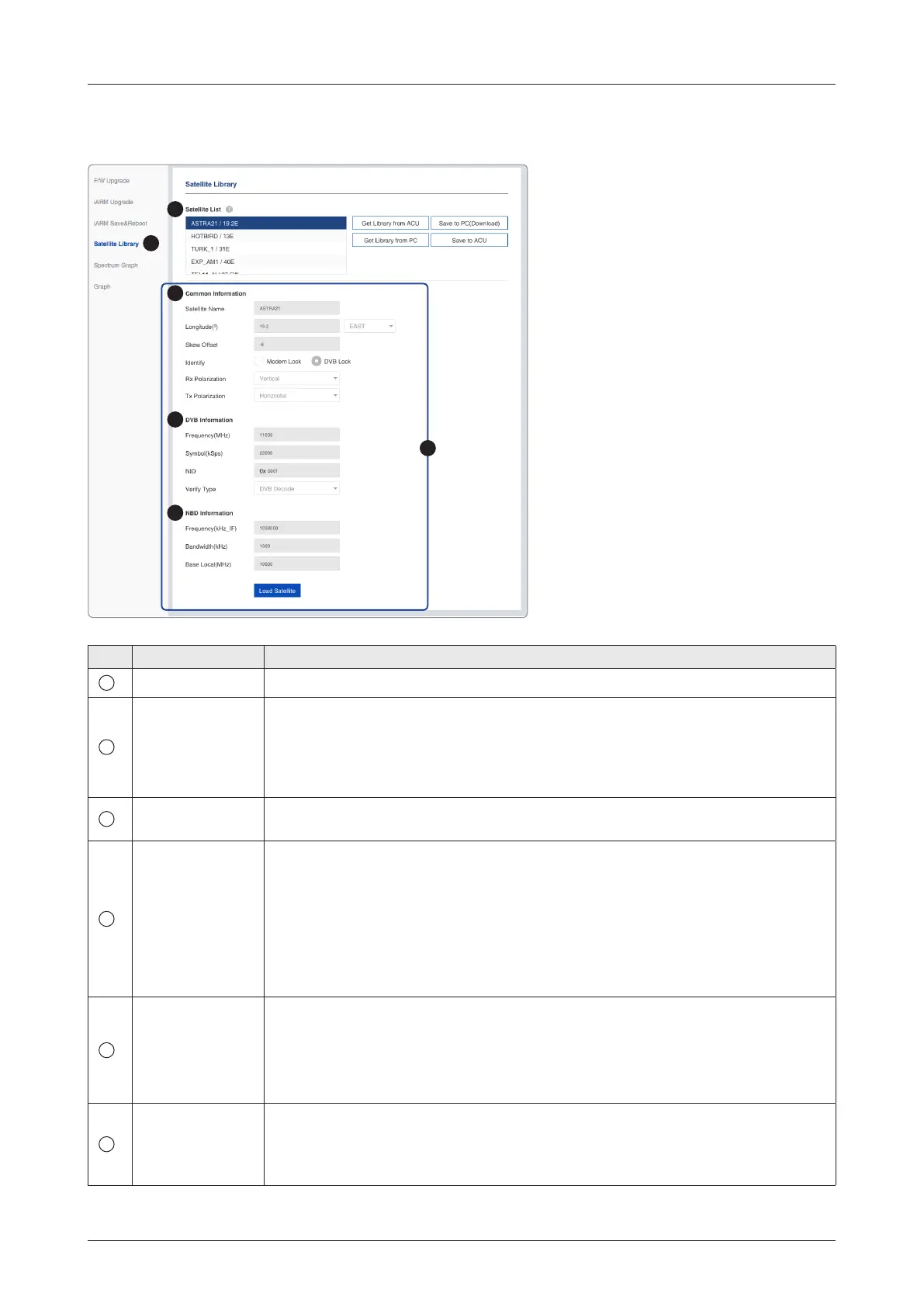

Using AptusNX
Satellite Library
No. Item Description
1
Satellite Library Sets the satellite library information.
2
Satellite List
Reads or manages satellite information from the library.
• Get Library from ACU: obtains satellite library le from the ACU.
• Get Library from PC: obtains the satellite library le from the PC.
• Save to PC (Download): saves the current library le to the PC.
• Save to ACU: saves the current library le to the ACU.
3
Satellite
Information
Select one of the satellites in the "Satellite List" then Click the "Load Satellite"
button to load the satellite information.
4
Common
Information
Displays selected satellite information.
• Satellite Name: displays the satellite name.
• Longitude(º): displays satellite orbit position.
• Skew Offset: displays the Skew offset.
• Identify: displays the lock setting type (Modem Lock / DVB Lock) for satellite
tracking.
• Rx Polarization: displays the current RX polarization.
• Tx Polarization: displays the current TX polarization.
5
DVB Information
Displays DVB mode's tracking information.
• Frequency (MHz): displays the tracking frequency.
• Symbol (kSps): displays the symbol rate.
• NID: displays the network ID.
• Verify Type: displays the verication type.
6
NBD Information
Displays NBD mode's tracking information.
• Frequency (kHz_IF): sets the tracking frequency.
• Bandwidth (kHz): sets the detection bandwidth.
• Base Local (MHz): sets the base local.
1
2
4
5
6
3
