Planning Installation
Antenna Mounting Hole Pattern

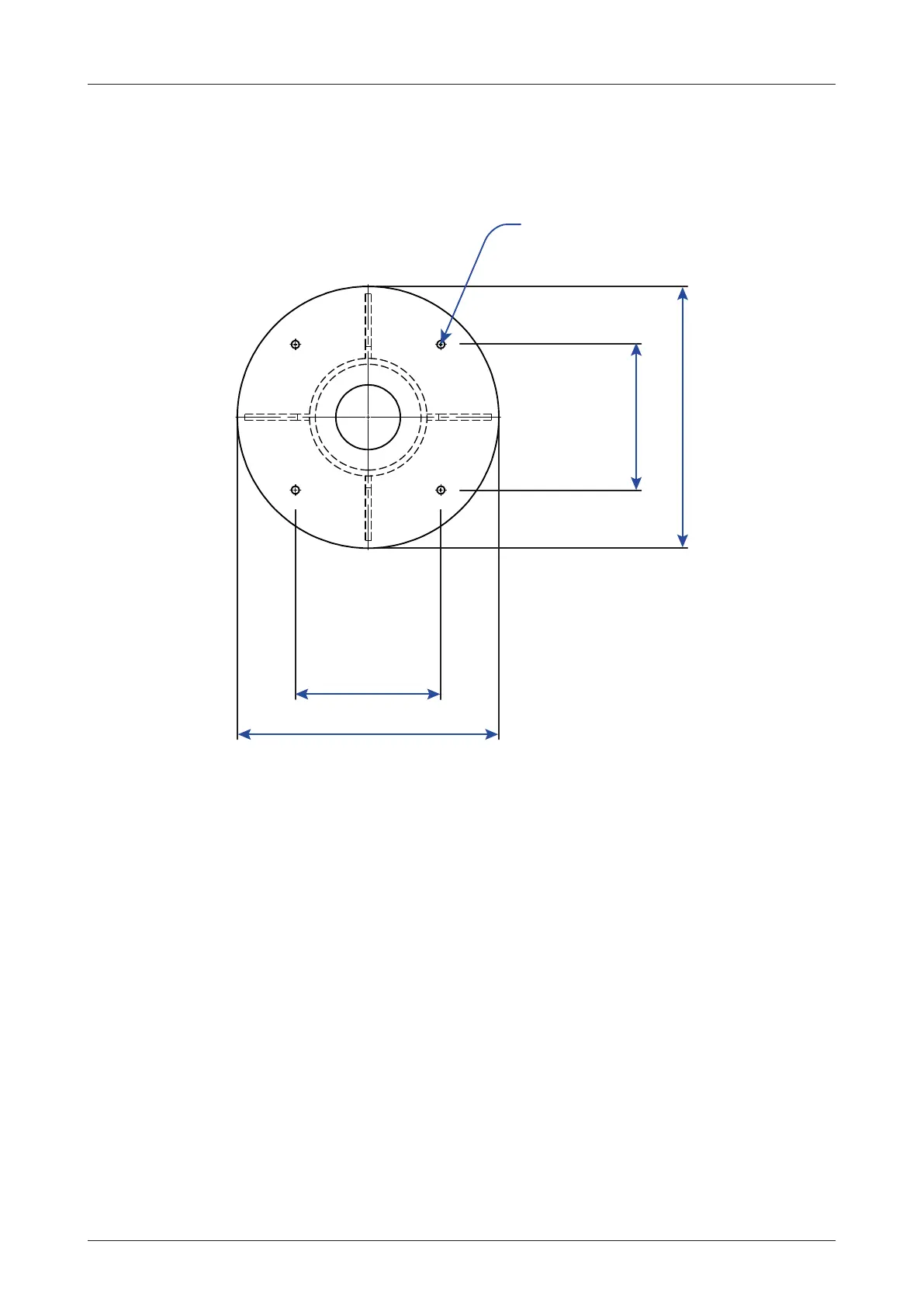

The mounting holes must be in the exact same place as shown in the diagram below.
Figure: Antenna Mounting Hole Pattern
247.5 mm (9.74”)
ø445 mm (17.5”)
ø445 mm (17.5”)
247.5 mm (9.74”)
4-ø13 Holes
