5. If any value is out of acceptable limits proceed to the adjust calibration procedure.
6. If all values are within acceptable limits continue with corner verification.
The corner calibration is set at the factory at time of shipment. It may be necessary to
make adjustments to the corner settings after replacing a load cell. Corners must be
checked if the unit fails the calibration verification check. This section is intended as
information to someone already familiar with the concepts of load cell summing.
There are six load cells within the LP600 scale; they are numbered as in Figure 1.
Figure 1
Tools required:
 3000 pound calibration press.
 111115 – 3” Calibration Puck
 100319 – LP 6 cell corner fixture.
 100259-A - 15" ( 0.25") x 22" ( 0.25") x 0.5" ( 0.125") rubber loading scale. (40 to
70 Shore A rating)
 140208 - #2 Phillips screwdriver.
 140210 - Static dissipation station.
Rubber Scale
Calibration Puck
Corner Fixture
Scale

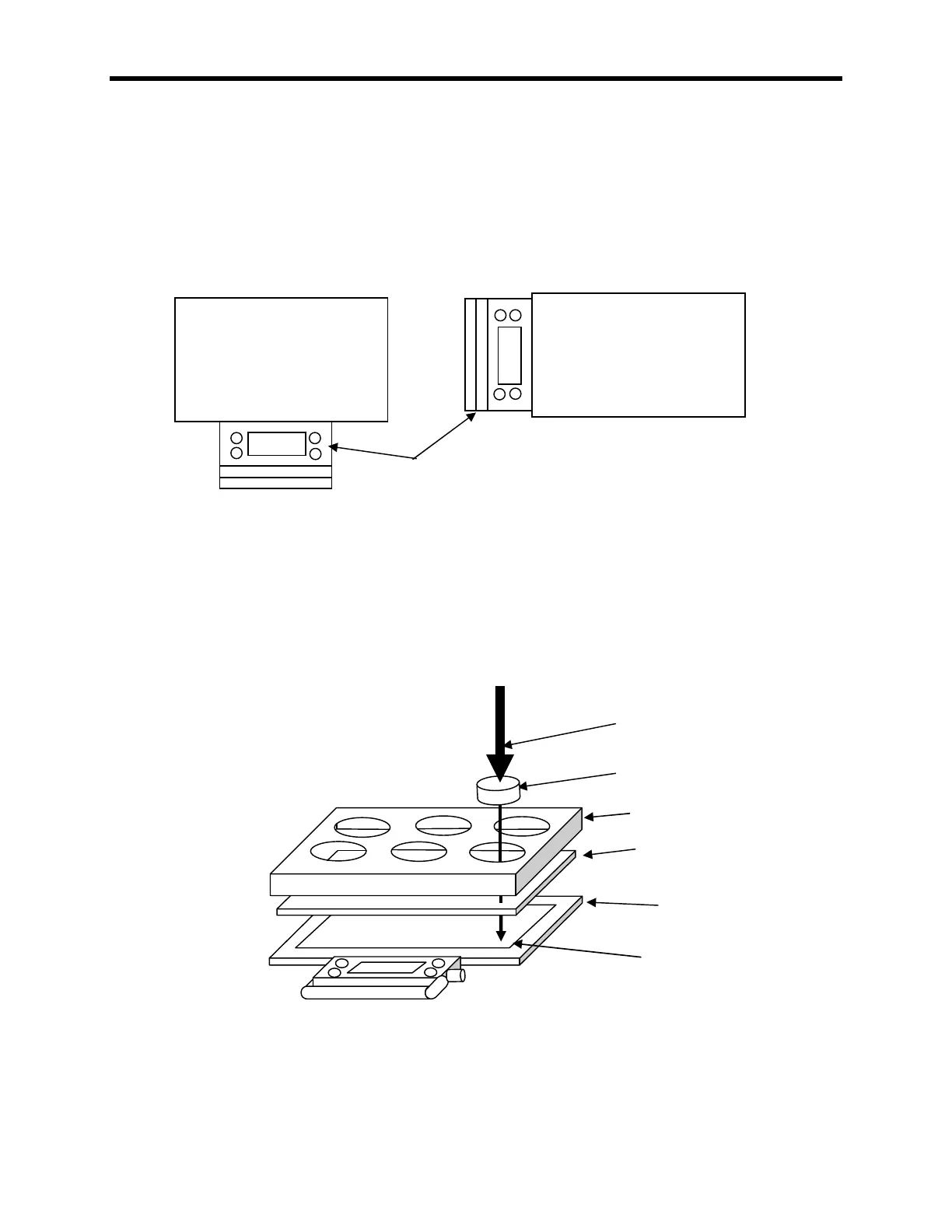

Figure 2
Assembly and use of corner alignment fixture
Calibration Force
Load Cell
Inside scale
6
1
2
3
5
4
Possible Control Panel positions
6
1
2
3
5
4
