ZeroWire Installation Manual 25
Wired LAN Setup
1. Connect power to your ZeroWire.
2. If this ZeroWire was previously connected via WiFi, see page 19 to Switch Connection
Modes.
3. Connect an Ethernet cable to the rear of the ZeroWire and wait 10 sec for the local
router to assign the ZeroWire an IP address.
4. On the ZeroWire press Menu, 8, [PIN], 6 and note the IP address announced. If you
hear “IP address is not configured” then wait a further 30s and repeat this step.
5. Open your web browser.
6. Enter the IP address from step 3 and the ZeroWire login screen should appear. Some
browsers may require you to enter http:// before the IP address.
7. Enter your username and password, by default this is installer and 9713.

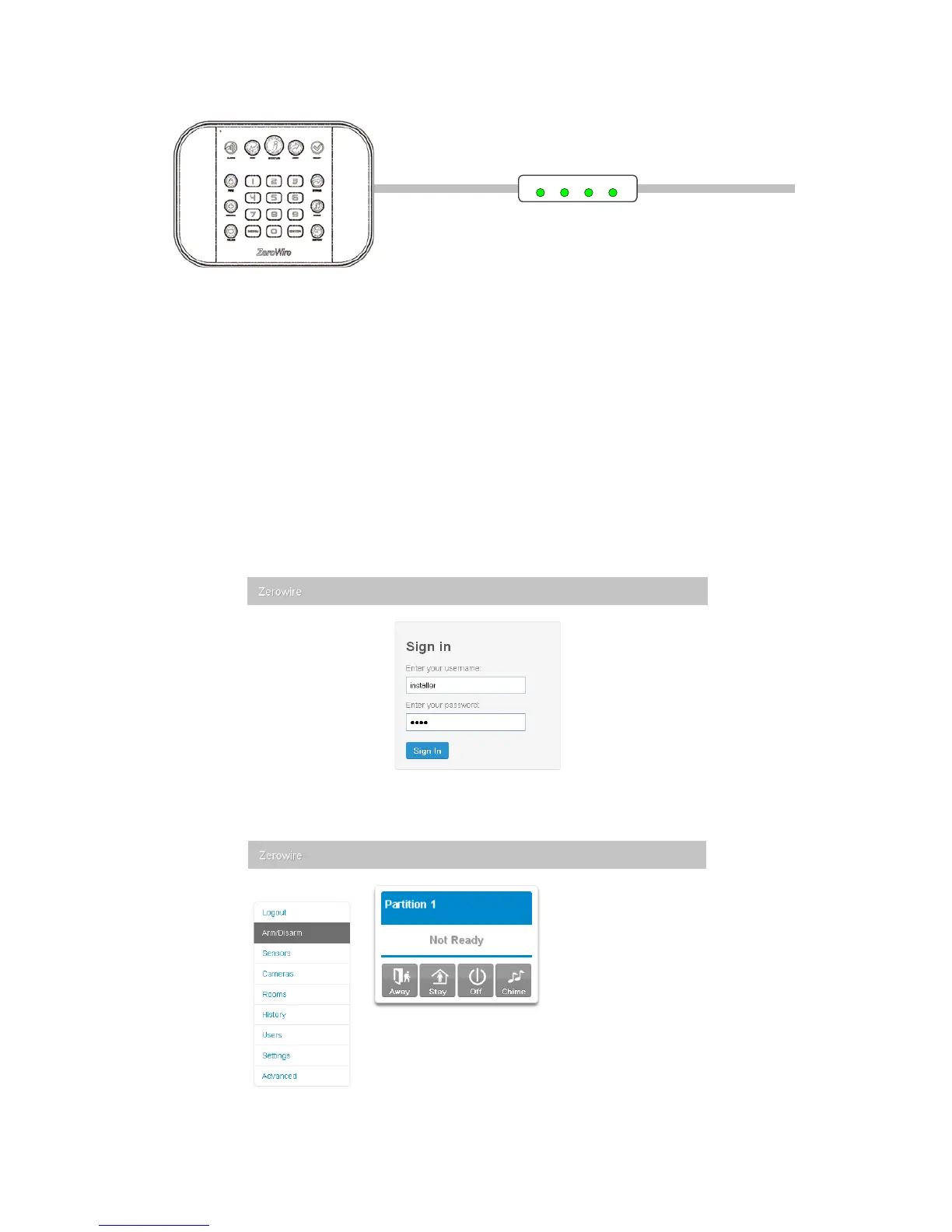

8. You should now see a screen similar to the one below:
9. Click Advanced to program your ZeroWire.
To internet
Router
To Next Page
