Chapter 4 —Print Fram
Ribbon Core Holders
e ribbon core holders are spring-loaded and hold the ends of the ribbon
cores opposite to the ribbon feed mechanism. A green plastic disc is press-
fitted on a metal shaft, that goes through the left-side wall of the print
frame moulding. e shaft is held by an E-ring inside the Feed button
cavity. A spring on the shaft makes it possible to snap the core in place. No
adjustments are facilitated.

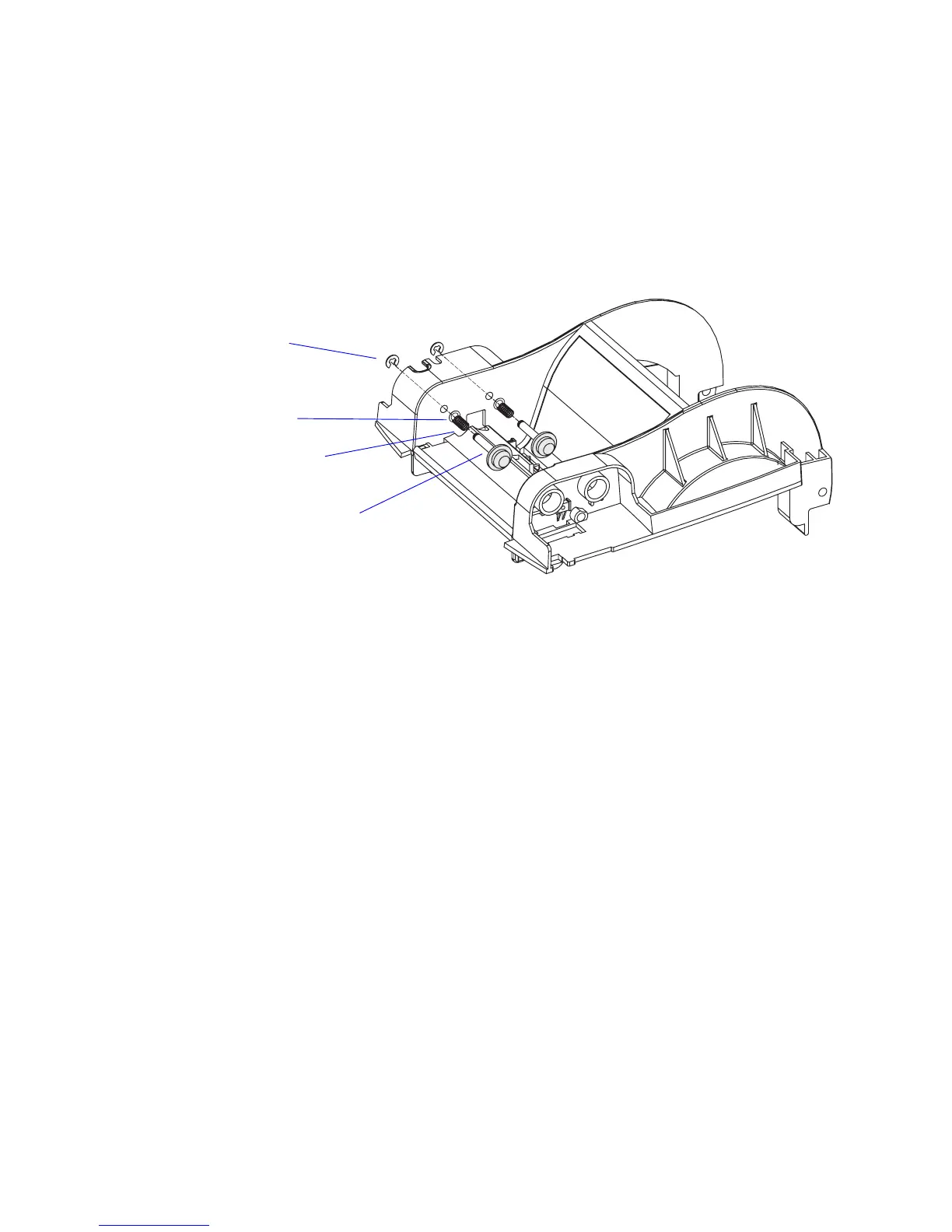

E-ring
Washer
Spring
Ribbon core holder

Intermec EasyCoder PC4 Specifications

General

Resolution	203 dpi
Power Requirements	100-240 VAC, 50-60 Hz
Print Method	Direct Thermal
Max Print Width	4.09 inches (104 mm)
Max Print Speed	4 inches per second
Max Print Length	39 inches
Media Type	Roll-fed, die-cut, continuous, fanfold, tags, tickets
Media Width	1.0 - 4.65 inches
Media Thickness	0.06 mm (0.00236 in) to 0.18 mm (0.00708 in)
Interface	RS-232
Memory	4 MB Flash, 8 MB SDRAM
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	10 to 90% non-condensing
