Intermec EasyCoder PC4 Service Manual

Intermec EasyCoder PC4—Service Manual 31
Chapter 4 —Print Fram

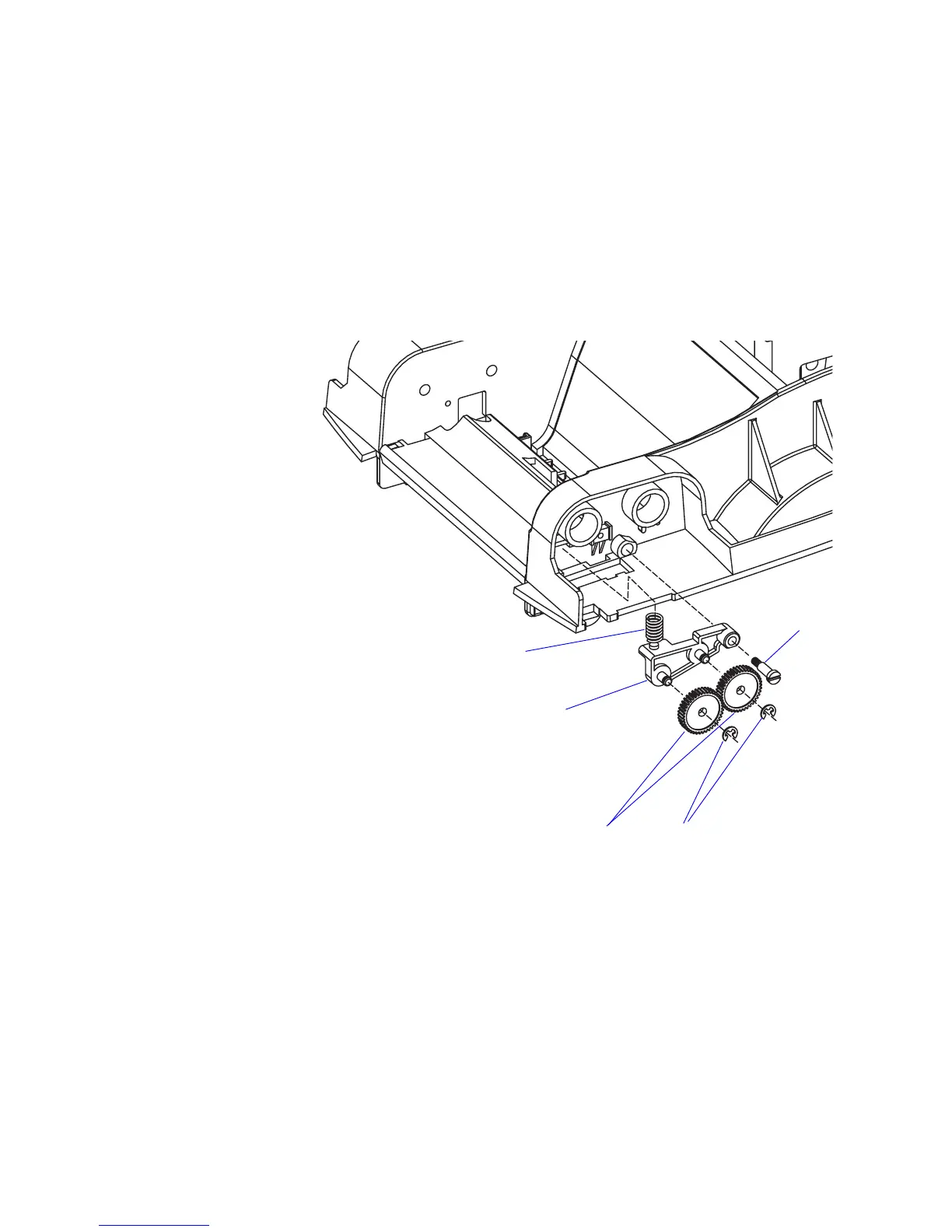

Ribbon Takeup Drive Train
e ribbon takeup assembly is driven by the stepper motor via a train of
gears. ere is a spring-loaded arm with two connected gears under the
ribbon takeup. e rear gear engages the gear wheel of the ribbon takeup,
whereas the other gear engages the gear train in the base frame when the
print frame is in closed and locked position. is implies that the ribbon
takeup can be rotated freely in both directions when the print frame is in
open position, but only in one direction when it is closed.
ere are no facilities for adjustments.
Spring
Arm
Gears (2)
E-rings (2)
Bolt

Intermec EasyCoder PC4 Specifications

General

Resolution	203 dpi
Power Requirements	100-240 VAC, 50-60 Hz
Print Method	Direct Thermal
Max Print Width	4.09 inches (104 mm)
Max Print Speed	4 inches per second
Max Print Length	39 inches
Media Type	Roll-fed, die-cut, continuous, fanfold, tags, tickets
Media Width	1.0 - 4.65 inches
Media Thickness	0.06 mm (0.00236 in) to 0.18 mm (0.00708 in)
Interface	RS-232
Memory	4 MB Flash, 8 MB SDRAM
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	10 to 90% non-condensing
