60 Intermec EasyCoder PD4—Service Manual
Chapter 10—Cutter
Cable clips
Cutter cable
Cutter
connector

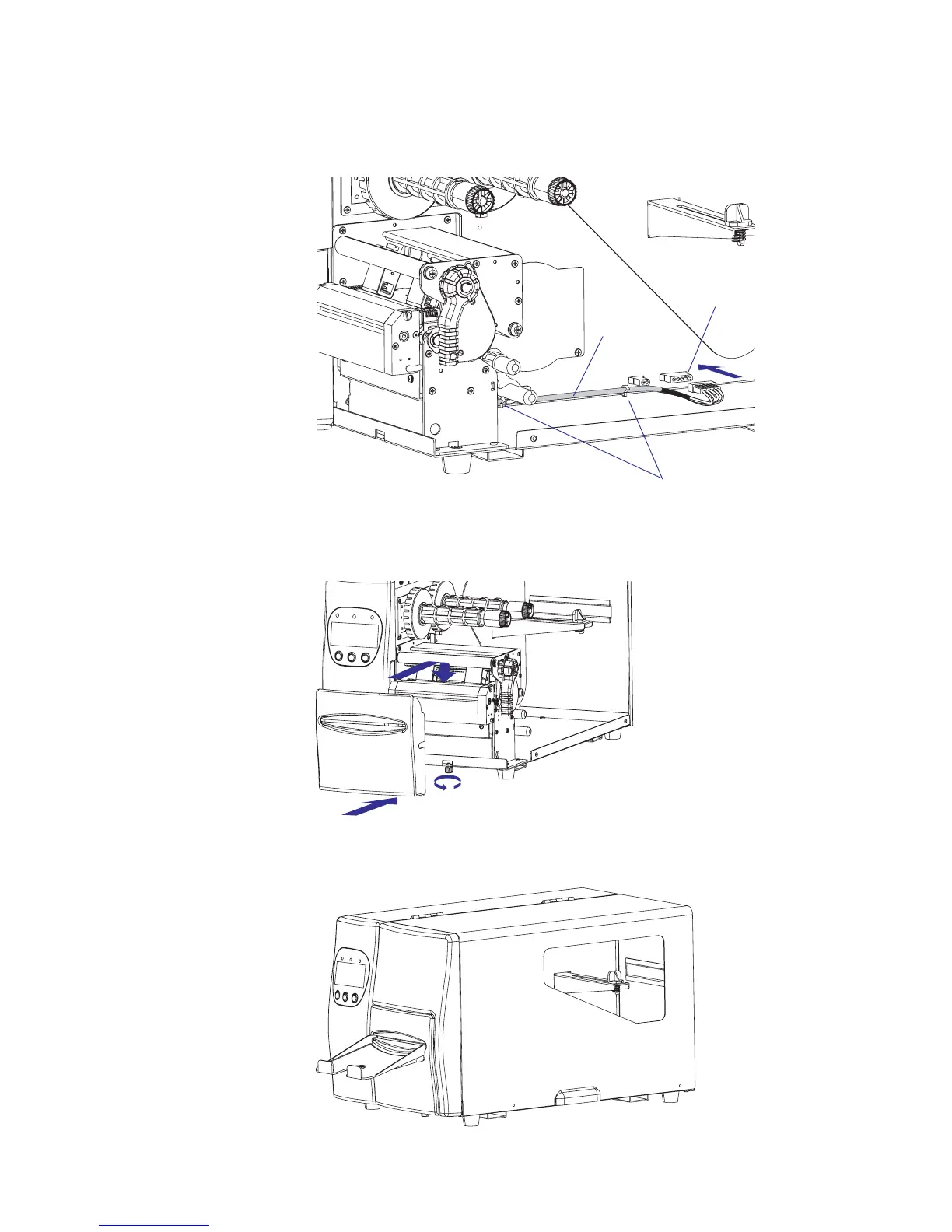

4 Plug in the cable from the cutter into the rear one of the two connectors
in the center section and fasten the cable to the bottom plate using the
two cable clips included in the kit.
5 Attach the cutter cover onto the cutter mechanism by fi rst connecting
the hooks on the back side of the cover over the cutter mechanism and
then locking the cover with the screw at the bottom.
6 If needed, fi t the tray to the front of the cutter.
