72 Intermec EasyCoder PD4—Service Manual
Chapter 12—Main Board

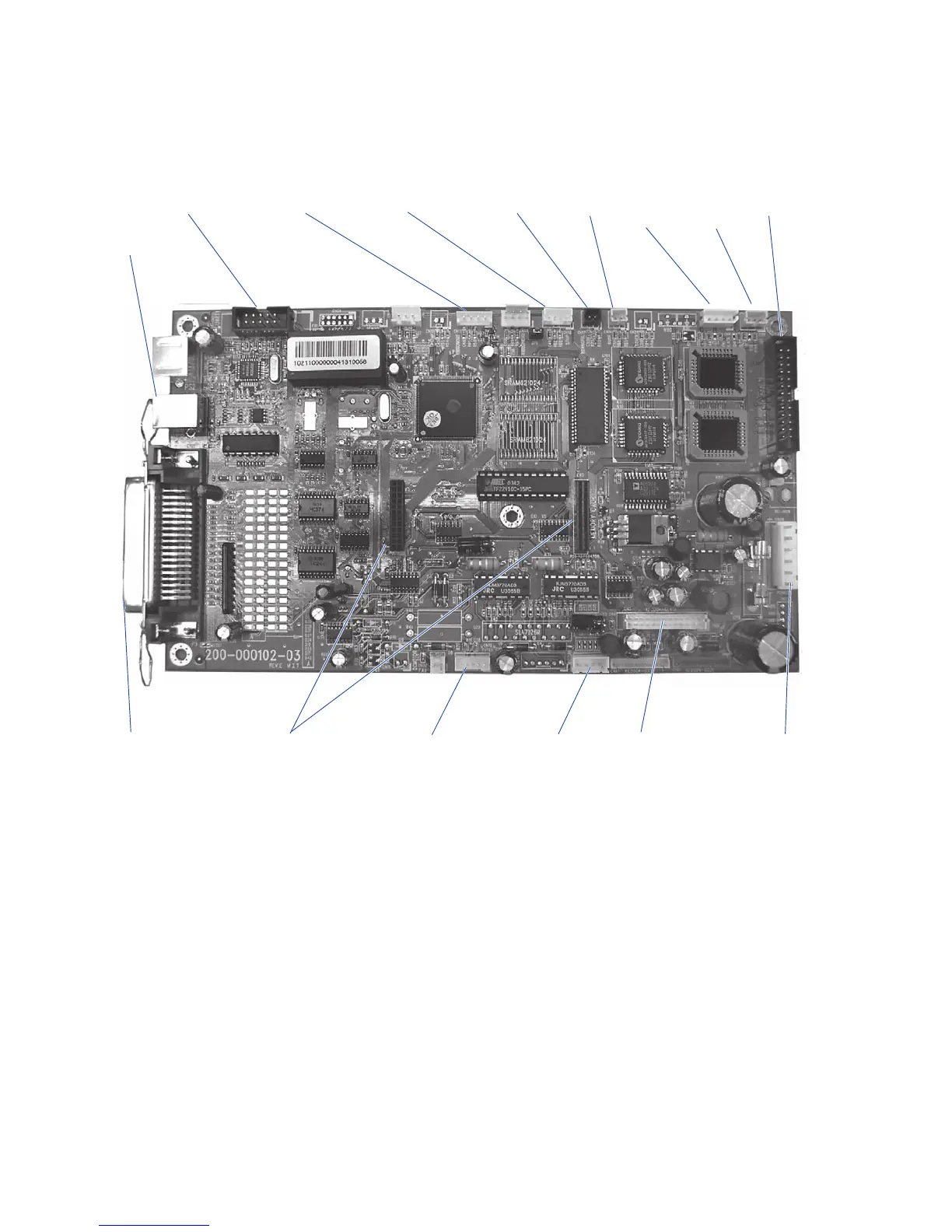

EasyCoder PD4, display, 300 dpi
CN11
Ribbon out
CN23
RS-232
CN12
Strip module
CN17
Rewinder full
CN14
Headlift
CN8
Black
mark
CN9
See
through
CN22
LCD Panel
JP4
USB
CN21
Centronics
CN19
Cutter
CN7
Motor
CN28
Power
CN5
Printhead
CN3 & CN4
Memory
expansion card
