Intermec EasyCoder PF2i Service Manual

Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual 75
Chapter 7—Print Mechanism
bw
fw
The parts of the print mechanism, as seen from the media compartment
side of the center section, are illustrated below.
Front ribbon
break shaft
Ribbon motor
Printhead
Printhead bracket
Upper label stop sensor
Headlift lever
Pressure arm
Guide link

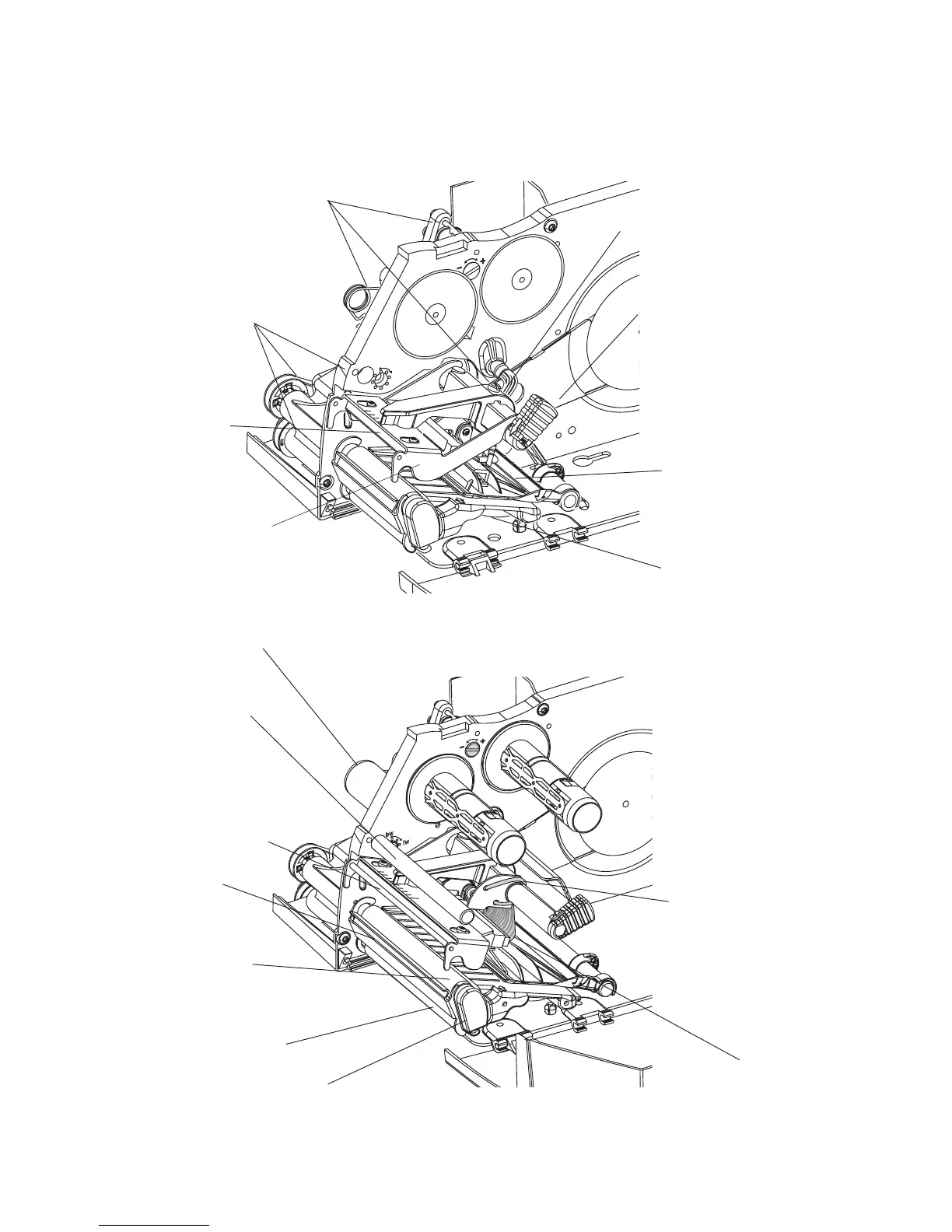

Print mechanism in an EasyCoder PF2i (direct thermal version)
Print mechanism in an EasyCoder PF4i (thermal transfer version)
Platen roller
Stepper motor,
belts, and pulleys
Liner drive roller
Tear bar
Media guide assy with LSS
Printhead ribbon
break shaft
Headlift mechanism
Printhead
cable
Optional spring
for vertical installation
