Chapter 7—Print Mechanism

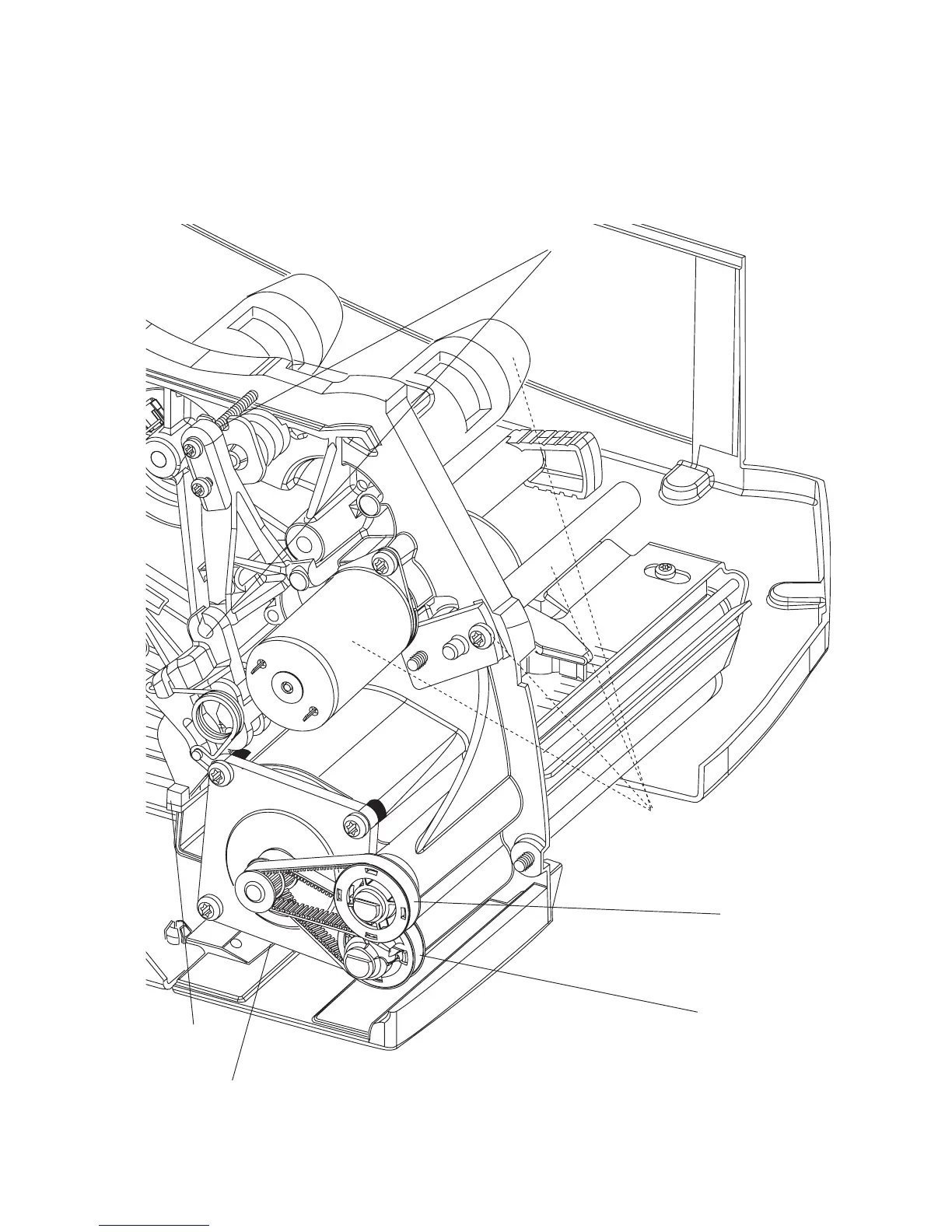

The parts of the print mechanism fi tted inside the electronics compart-
ment in an EasyCoder PF4i thermal transfer printer are illustrated below.
In an EasyCoder PF2i, the ribbon mechanism is optional. Otherwise, the
parts on the left side of the center section are identical in EasyCoder PF2i,
PF4i, and PF4i Compact Industrial.
Stepper motor
Pulley & belt
(Platen roller)
Pulley & belt
(Liner drive roller)
Headlift sensor
Headlift linkage
Ribbon mechanism
(optional in EasyCoder PF2i)
