112 EasyCoder PX6i User’s Guide (Fingerprint version)
Chapter 11 — Maintenance

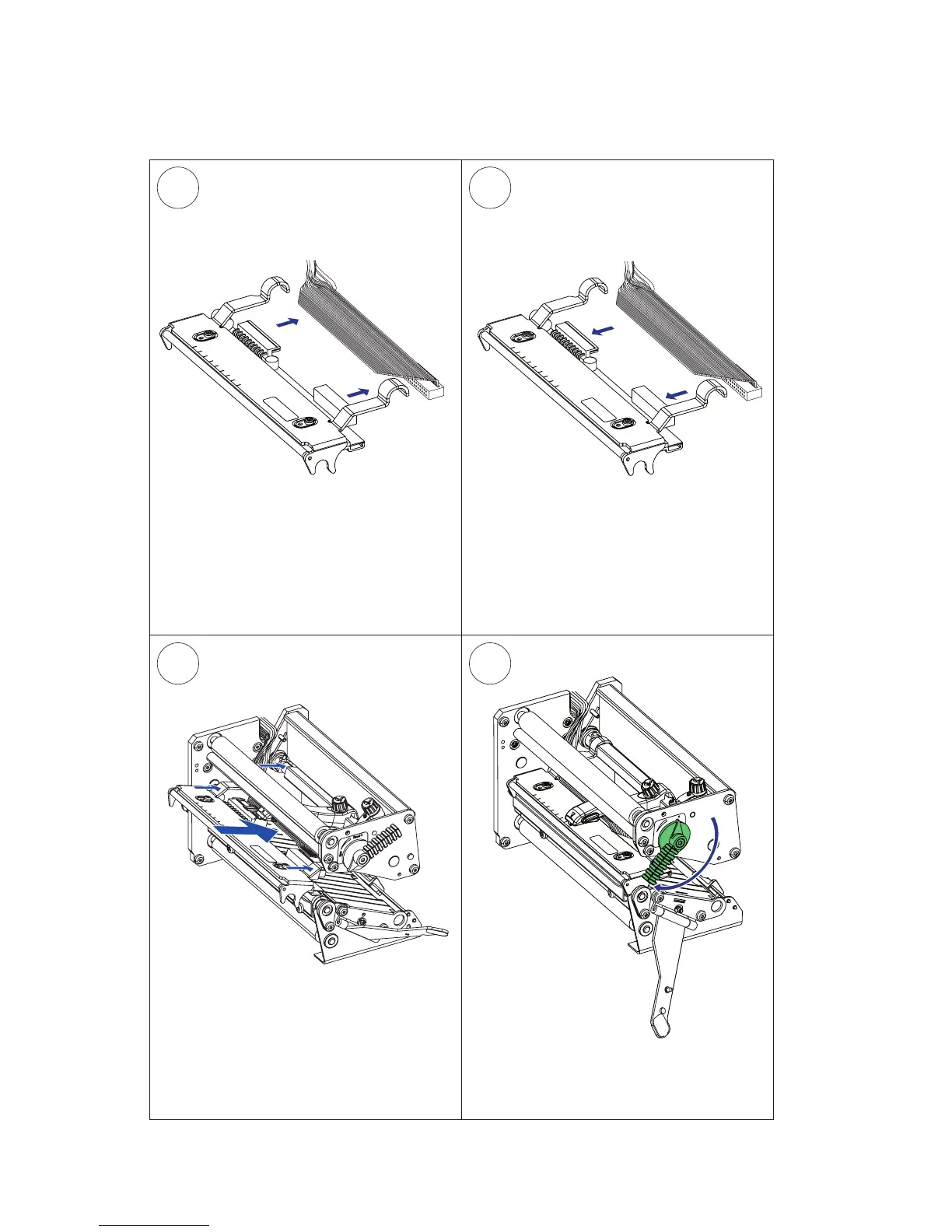

Connect the two cables to the replace-
ment printhead.
Fit the hooks of the printhead bracket
fi ngers onto the headlift shaft. Make
sure that the cables do not prevent the
bracket fi ngers from being properly
seated on the headlift shaft.
Printhead Replacement, cont.
Close the printhead so the magnet
engages the printhead bracket.
Disconnect the cables from the print-
head. Note the snap-lock on the inner
connector. Pull at the connectors—not
at the cables!
