INVT Goodrive 35 Series User Manual

Goodrive35 inverters Product overview
14

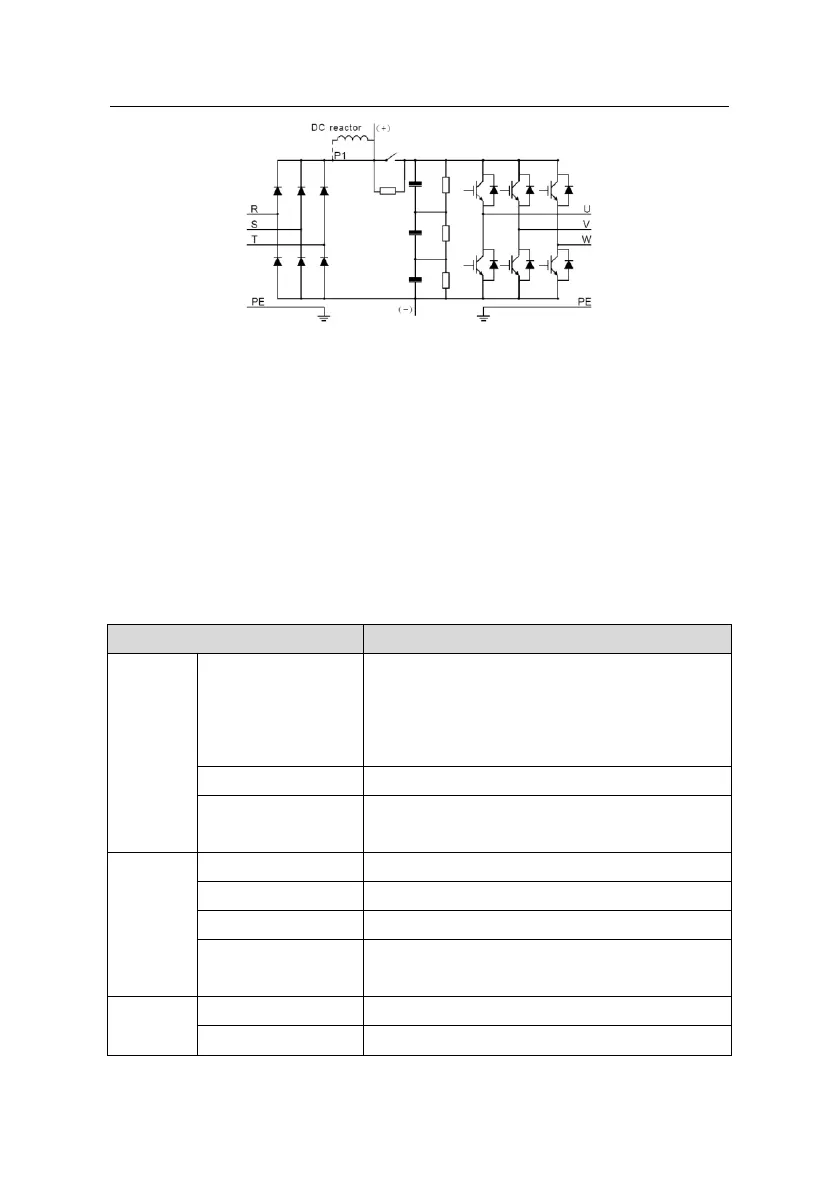

Fig 3-3 The simplified main circuit diagram (inverters of 660V)
Note:
1. The inverters of 380V(≥37kW) supports external DC reactors and external braking units,
but it is necessary to remove the copper tag between P1 and(+) before connecting. DC
reactors and external braking units are optional.
2. The inverters of 380V (≤30kW) supports external braking resistors which are optional.
3. The inverters of 660V supports external DC reactors and external braking units, but it is
necessary to remove the copper tag between P1 and (+) before connecting. DC reactors
and external braking units are optional.
3.3 Product specification
Function
Specification
Power
input
Input voltage (V)
AC 3PH 380V(-15%)~440V(+10%)
Rated voltage:380V
AC 3PH 520V(-15%)~690V(+10%)
Rated voltage:660V
Input current (A)
Refer to the rated value
Input frequency (Hz)
50Hz or 60Hz
Allowed range: 47~63Hz
Power
output
Output voltage (V)
0~input voltage
Output current (A)
Refer to the rated value
Output power (kW)
Refer to the rated value
Output frequency
(Hz)
0~400Hz
Technical
control
Control mode
SVPWM, SVC and VC
Motor type
Asynchronous motor and permanent magnet
