INVT Goodrive 35 Series User Manual

Goodrive35 inverters Product overview
17
Function
Specification
EMC filter
Built-in C3 filter for 380V inverters: meet the degree
requirement of IEC61800-3 C3
No built-in filters for 660V inverters
External filter:optional, meet the degree requirement
of IEC61800-3 C2
3.4 Name plate

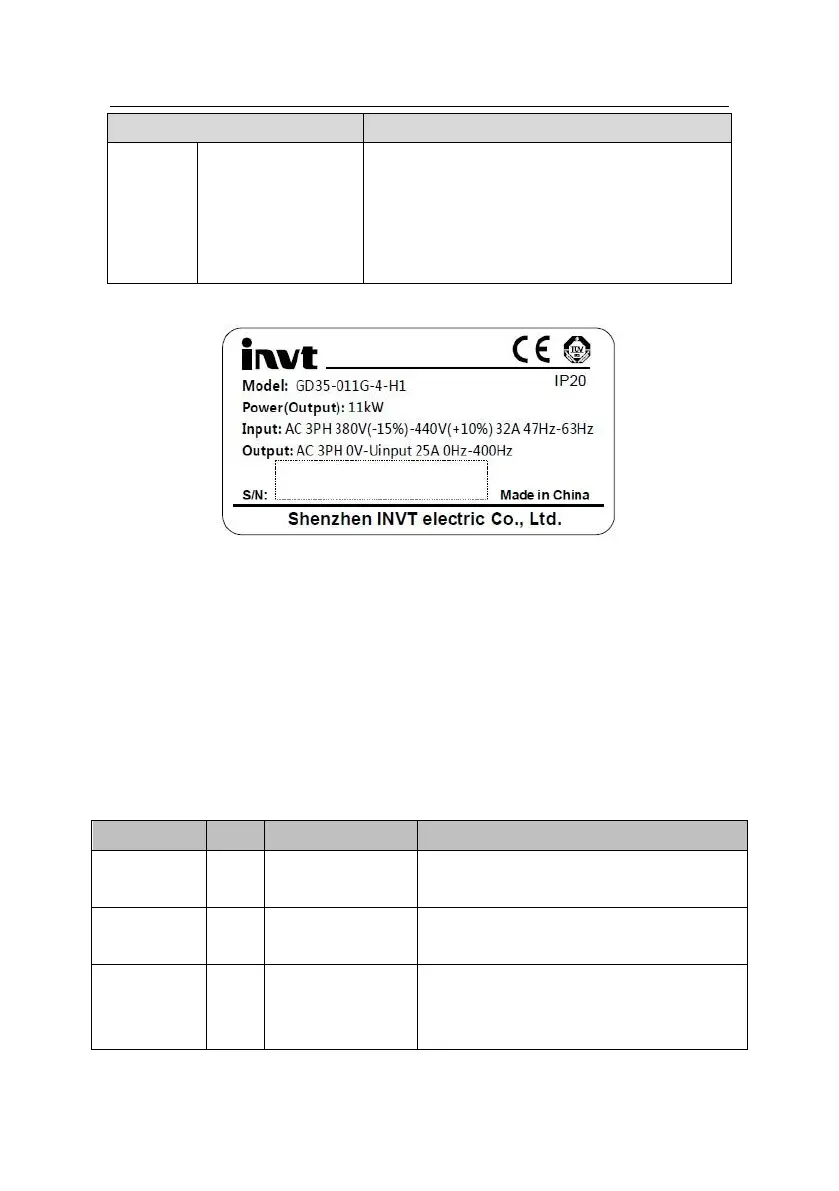

Fig 3-4 Name plate
Note: After the CE certification, the icon can be marked.
3.5 Type designation key
The type designation contains information on the inverter. The user can find the type
designation on the type designation label attached to the inverter or the simple name plate.
3.5.1 Model
GD35 – 5R5G – 4 –H1
① ② ③ ④
Key
Sign
Instruction
Content
Abbreviation
①
Abbreviation
Goodrive35: Goodrive35 close-loop vector
control inverters
Rated power
②
Power + Load
5R5-5.5kW
G—constant torque load
Voltage
degree
③
Voltage degree
4:AC 3PH 380V(-15%)~440V(+10%)
Rated voltage:380V
6:AC 3PH 520V(-15%)~690V(+10%)
